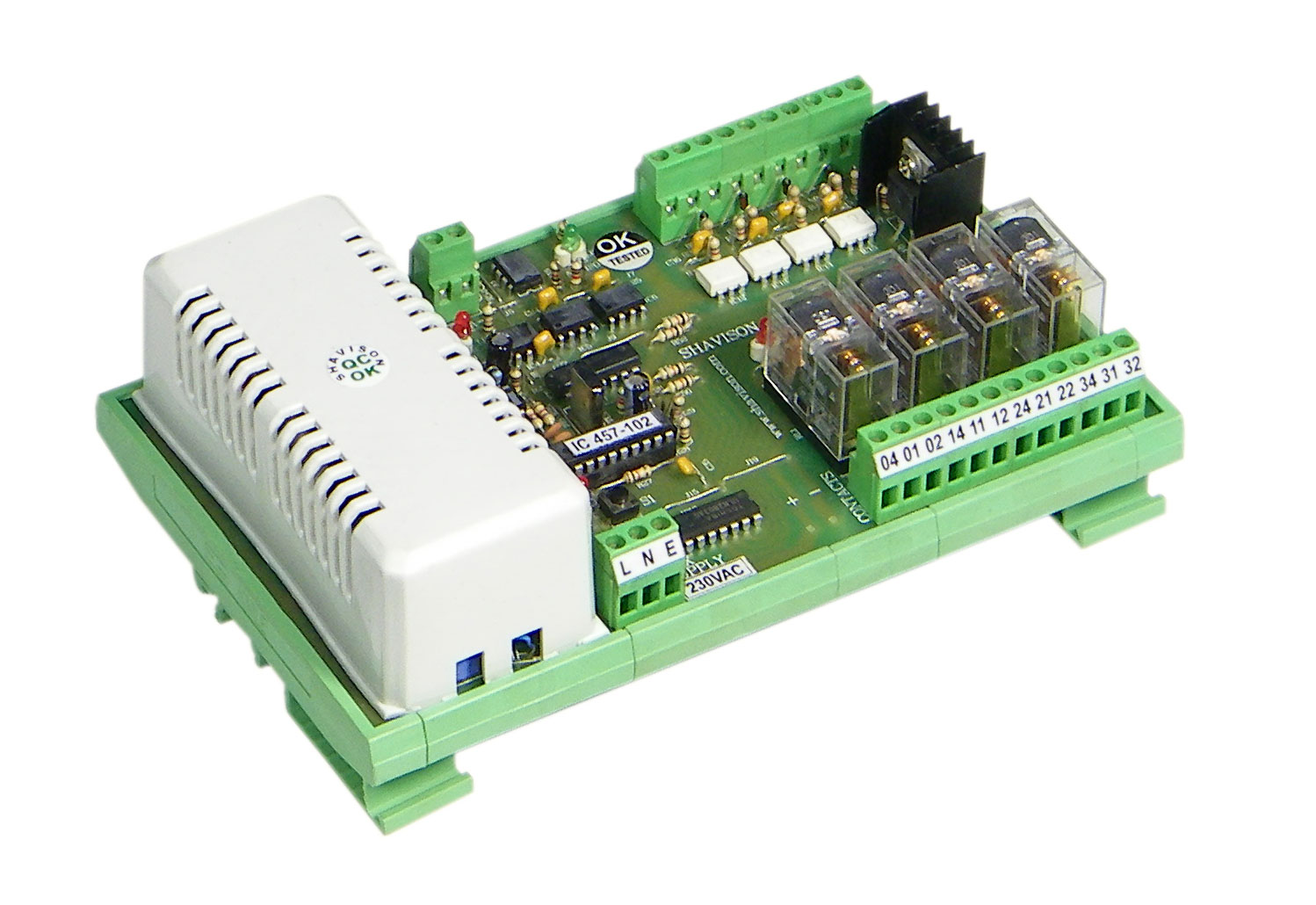

Combo Module
Supports MODBUS RTU communication protocol
Works as slave with PLC master
Communication over RS232/485 bus
2.5KVAC isolation between 485 link and station circuit
Slave address & baud rate selectivity via 485 bus
Links upto 4000ft (1.2KM) long possible
Onboard SMPS works from 90 to 270VAC
Response time < 50 millisec
Low cost
35mm DIN rail mountable
| Aux Supply | 90 ~ 270VAC, 47 ~ 63Hz |
| I / O | Input : 4 DI Output : 4 Channel, 1 C/O Relays |
| Operating Ambient | 0~55°C, 85% RH |
| Storage Ambient | -20°C to 85°C |
| Model | Combo Module |
| Function | This module comprises both input and output. It has 4 relay outputs and 4 digital key inputs. |
| Features | Cost effective expansion of existing PLC system. Cost effective control of remote field devices. Control of field devices from personal computer. Data acquisition. Cost effective control of remote field devices. |
