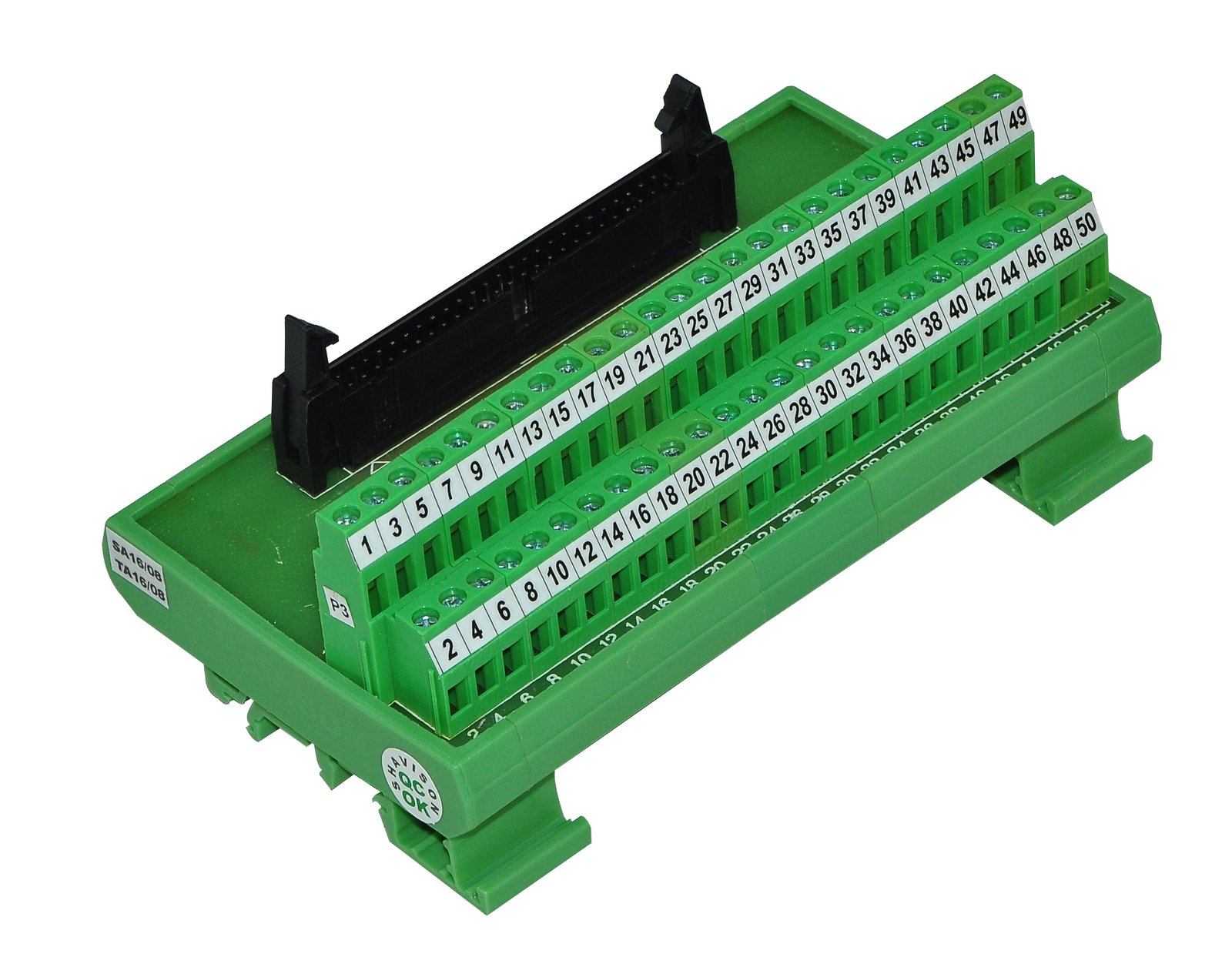

FRC Connector Module 50PIN
Voltage Rating : 100VDC
INPUT SIDE: FRC
Current Rating : 500mA
| No. Of Pins | 50 |
| Voltage Rating | 100 VDC |
| Current Rating (Input) | 500 mA |
| Current Rating (Output) | 500 mA |
| Operating ambient | 0~55°C, 85% RH |
| Storage Ambient | -20°C to 85°C |
| Terminations (Input Side) | FRC |
| Terminations (Output Side) | Screw type, for 2.5mm sq. wire |
| Mounting | 35mm DIN Rail |
| Product Code | Description | Certification | Price Factor |
|---|
