Price: $22.00
Review your selected items and send an enquiry. We'll get back to you shortly.

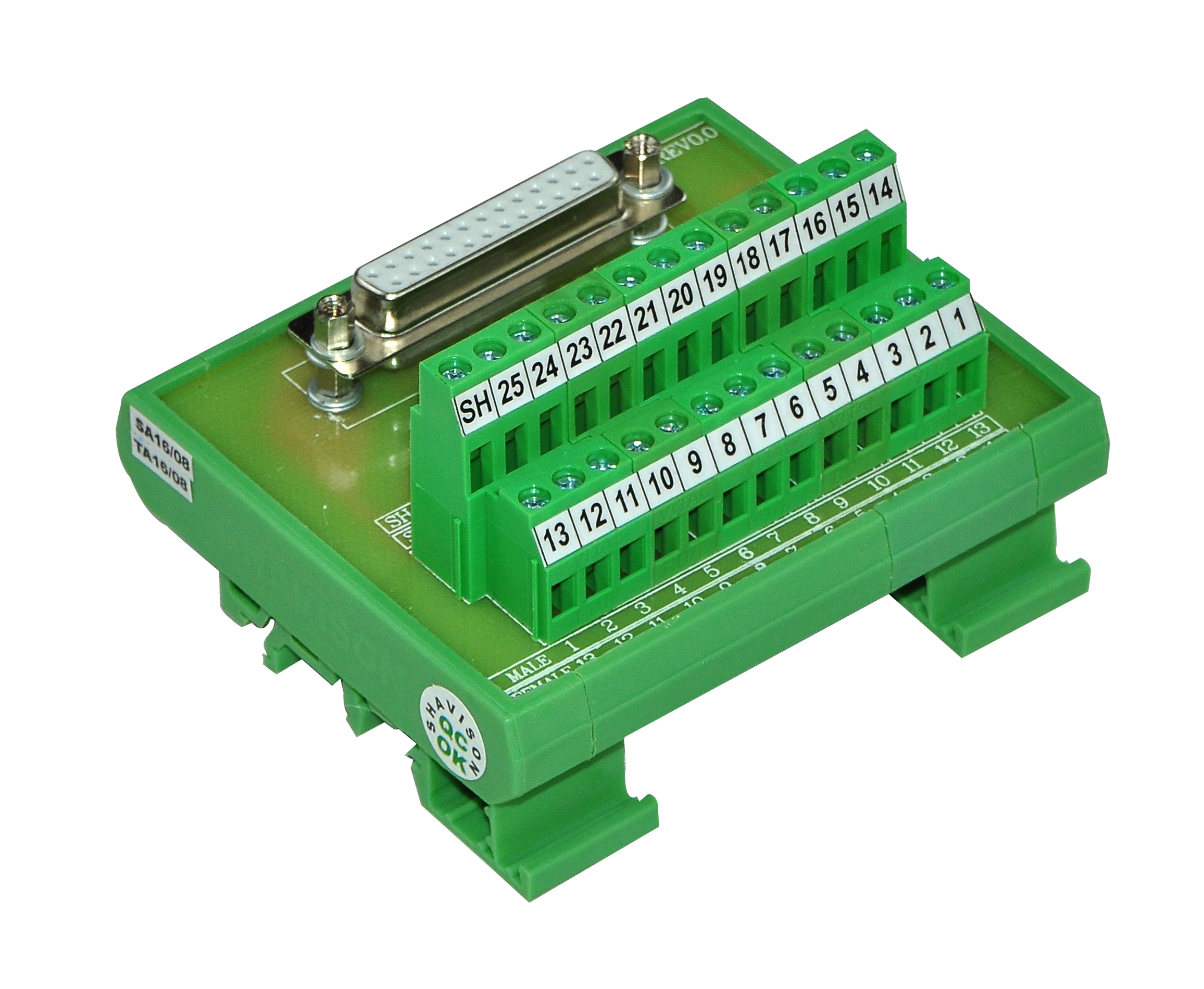

Interface Module D 25 Pin F D SUB CON Female
Voltage Rating : 100VDC
Current Rating : 500mA
Order Code shown above is for Female DSUB Terminator Module.
| No. Of Pins | 25 |
| Voltage Rating | 100 VDC |
| Current Rating (Input) | 500 mA |
| Current Rating (Output) | 500 mA |
| Operating Ambient | 0~55°C, 85% RH |
| Storage Ambient | -20°C to 85°C |
| Terminations (Input Side) | D-SUB |
| Terminations (Output Side) | Screw type, for 2.5mm sq. wire |
| Mounting | 35mm DIN Rail |
