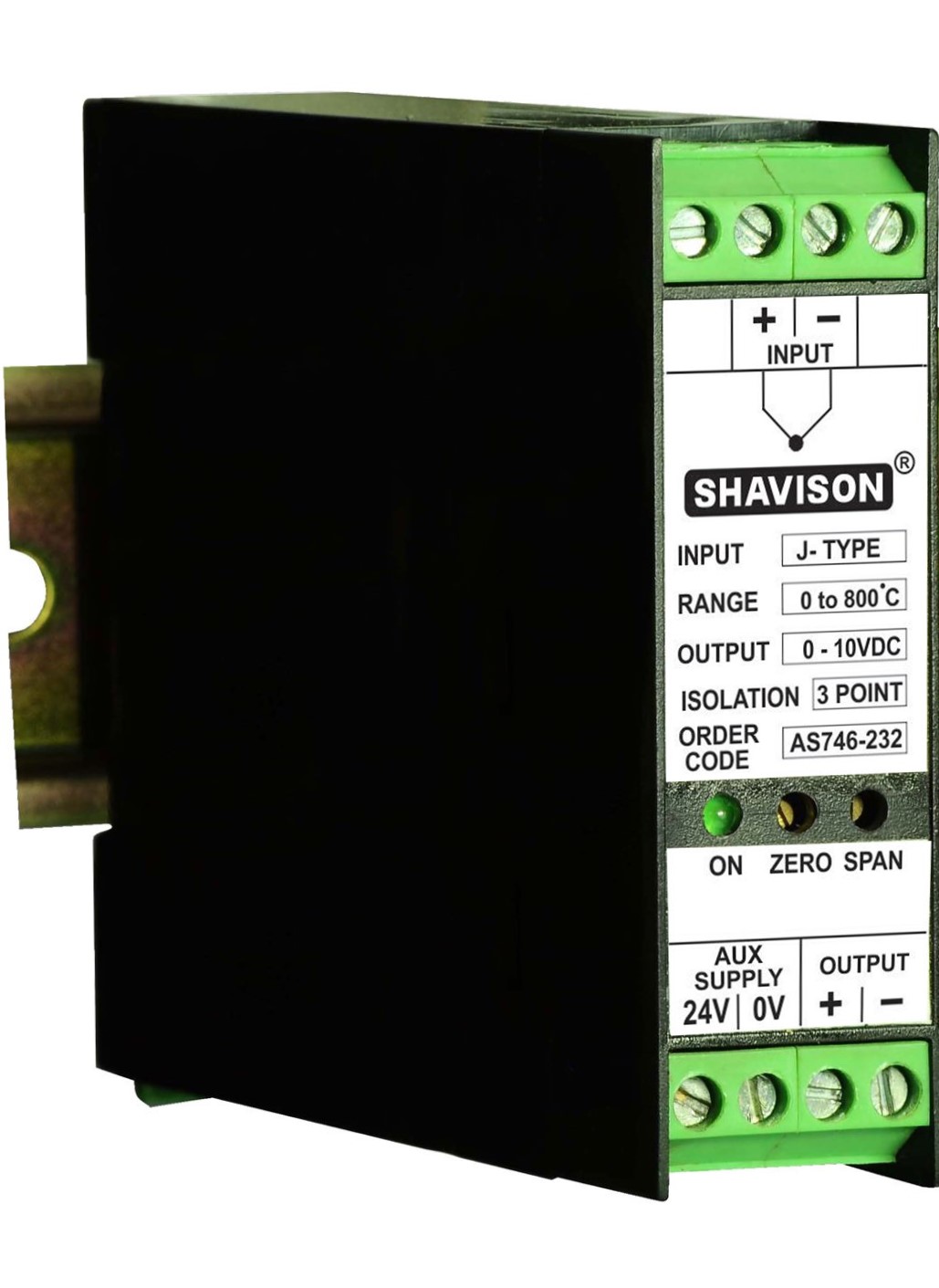

Signal Converter I/P : 0 to 800ºC,Thermocouple J Type, O/P : 0-10VDC, Aux Supply : 24VDC (18-32VDC)
22.5mm Slim Converter
Single Input - Output
Aux. Supply : 18 to 32VDC
3 Point Isolation
| Input Type | Thermocouple J Type |
| Input | 0 to 800ºC |
| Output | 0-10VDC |
| Aux. Supply | 24VDC |
| Operating Ambient | 15~35°C, 95% RH non-condensing. |
| Storage Temperature | -20°C to 85°C |
| Response Time | < 15 ms |
| Output Ripple & Noise | Less than 1% of Span |
| Isolation | Input – Output : 1.5KVAC, 1 minute Input – Aux. Supply : 1.5KVAC, 1 minute Output – Aux Supply : 1.5KVAC, 1 minute |
| Adjustments | Zero & Span adjustments on front |
| Protection | Output short circuit current = 30mA max |
| Accuracy | +/- 0.7% of Full Scale@35°C ambient temperature + Thermocouple linearity error +/- Cold junction compensation of 2ºC |
| Max. Input | 10VDC |
