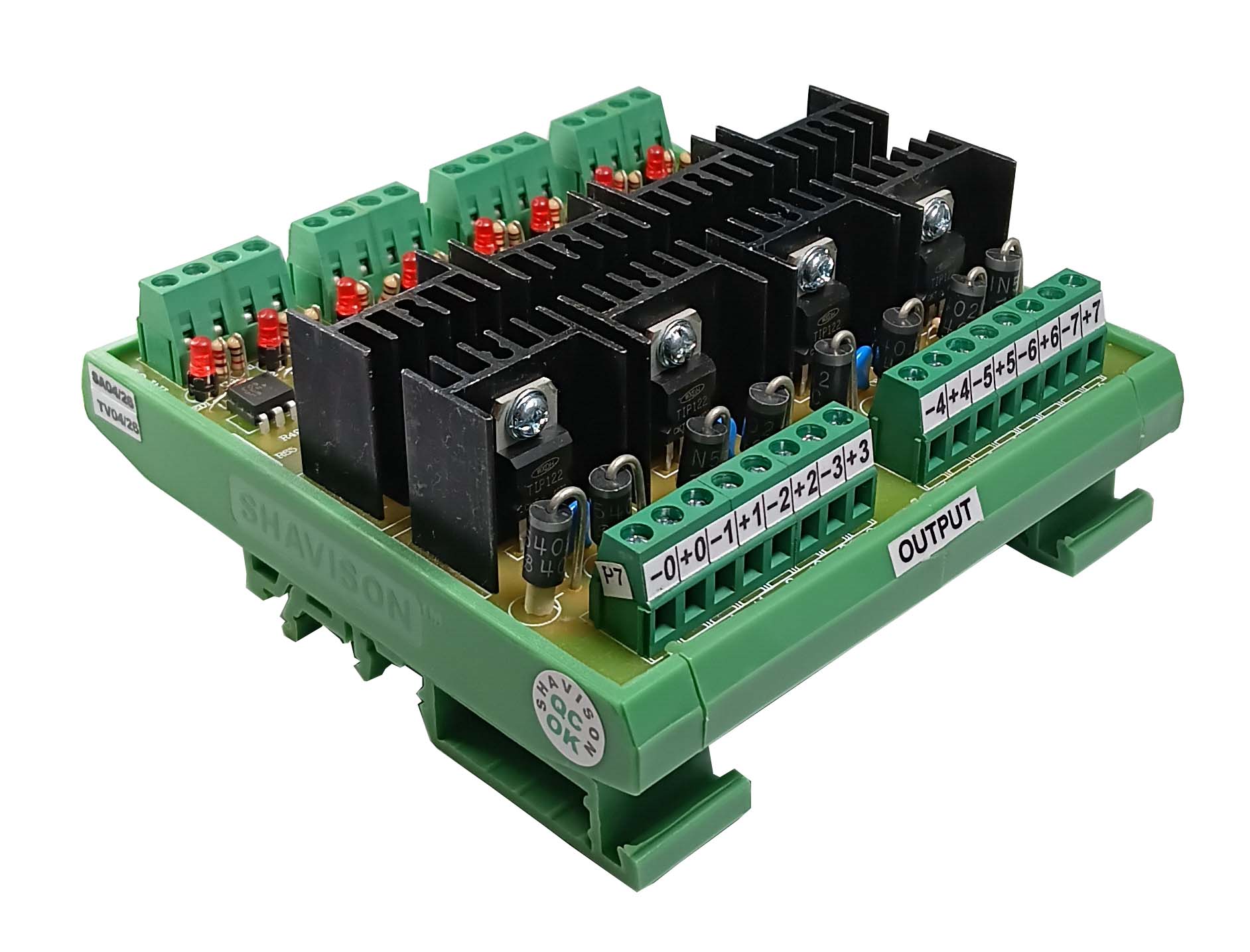

SSR Isolated, DC-DC, 8 channel, Input :24V, Output : 24VDC : 2A
Optical Isolation between I/O
Input current < 15mA
Output : 24VDC, 2A
Operating Freq. upto 10KHz
Not recommended for Inductive Loads
| Isolation | Isolated |
| Input / Output Type | DC-DC |
| No. Of Channels | 8 |
| Input Voltage | 24 V |
| Output Rating | 24VDC : 2A |
| Dielectric Strength | 1. Inputs - channel to channel (when isolated) : 100VAC, 50/60 Hz for 1 minute 2. Input to Output : Optical – 1.5KVAC, 50/60 Hz for 1 minute 3. Outputs - channel to channel : 1KVAC, 50/60 Hz for 1 minute |
| Features | Optical Isolation between Input & Output Negligible switching delay Low Input Current Can be used as NPN to PNP Converter or vice versa |
| Operating Ambient | 0~55°C, 85% RH |
| Storage Ambient | -20°C to 85°C |
| Mounting | 35 mm DIN rail |
