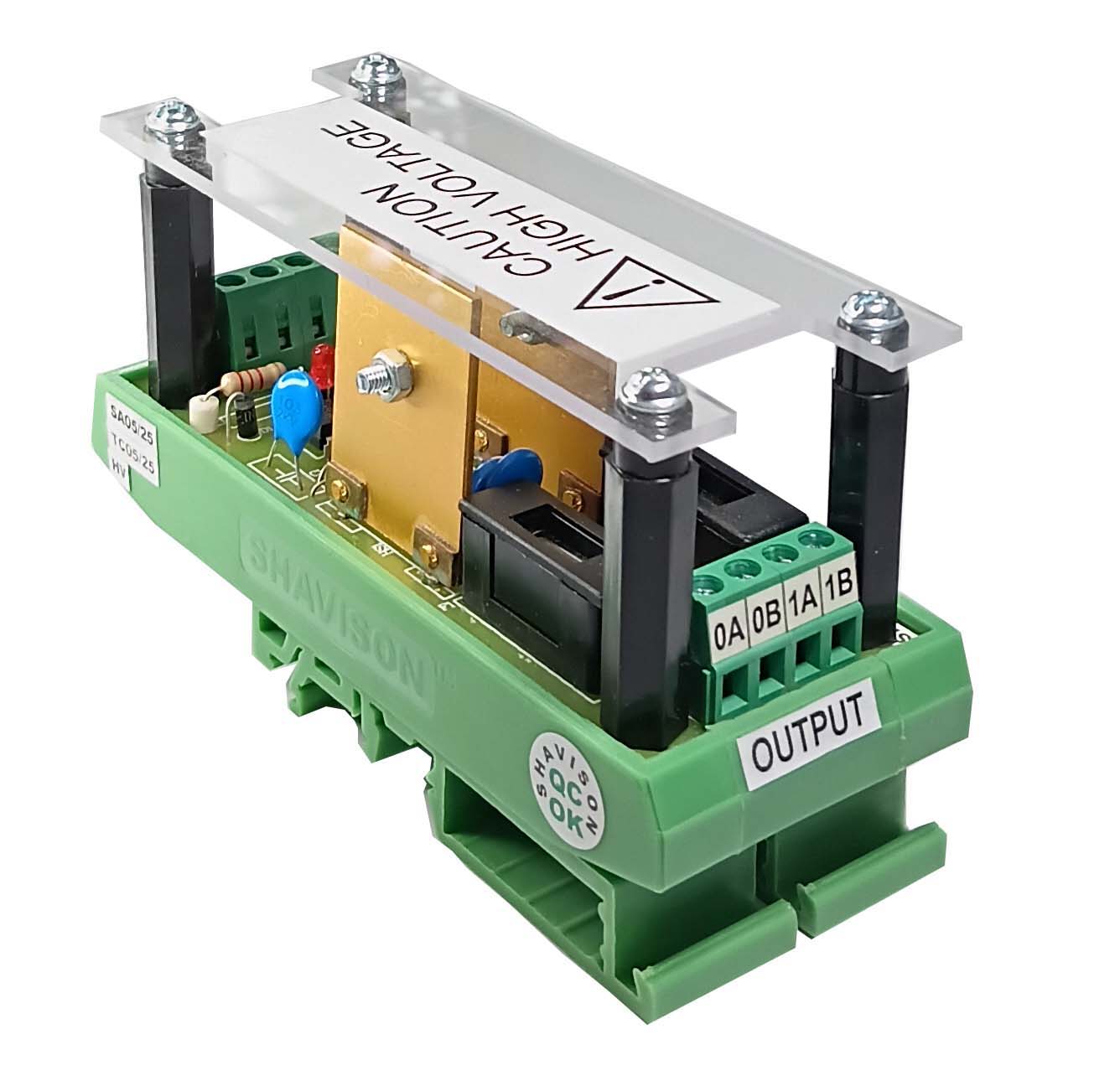

SSR Isolated, DC-AC, 2 channel, Input :24V, Output : 70-270VAC : 2A

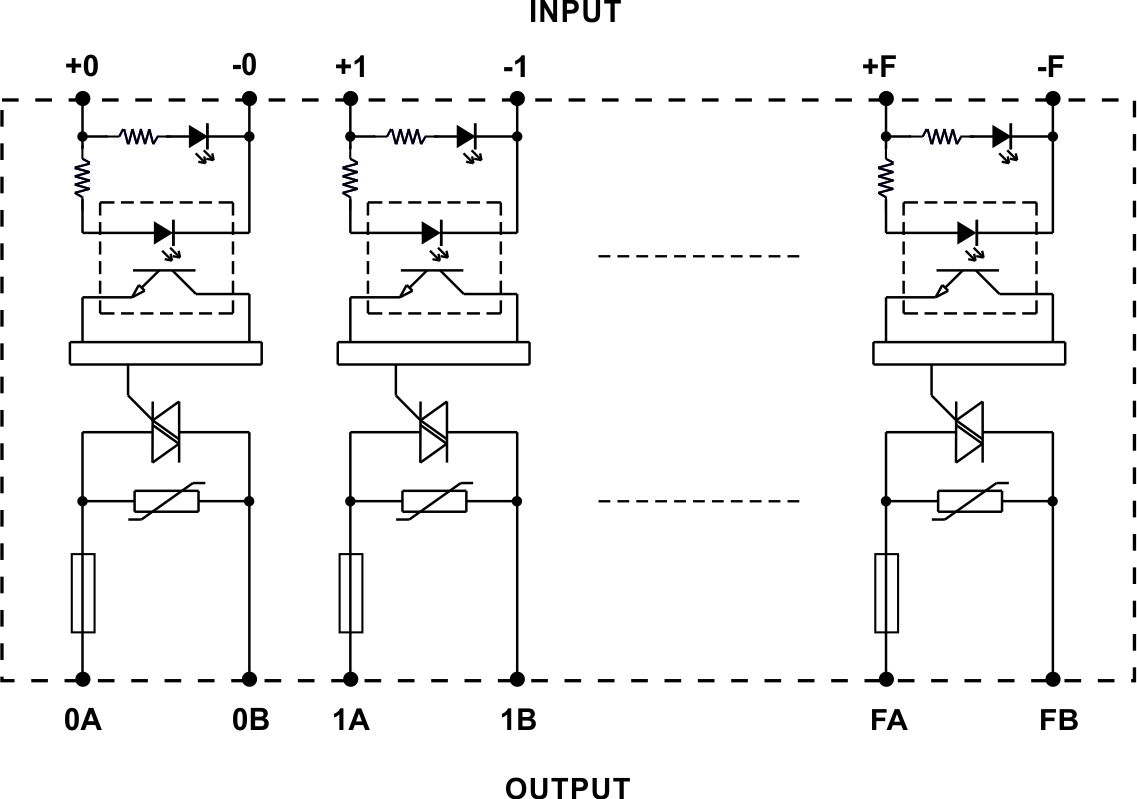

Optical Isolation between I/O
Input current < 15mA
Output : 70-270VAC, 2A
Operating Freq. upto 25Hz
Fuse at output
| Isolation | Isolated |
| Input / Output Type | DC-AC |
| No. Of Channels | 2 |
| Input Voltage | 24 V |
| Output Rating | 70-270VAC : 2A |
| Dielectric Strength | 1. Inputs - channel to channel (when isolated) : 100VAC, 50/60 Hz for 1 minute 2. Input to Output : Optical – 1.5KVAC, 50/60 Hz for 1 minute 3. Outputs - channel to channel : 1KVAC, 50/60 Hz for 1 minute |
| Features | Optical Isolation between Input & Output Negligible switching delay Low Input Current Fuse at output for over current protection |
| Operating Ambient | 0~55°C, 85% RH |
| Storage Ambient | -20°C to 85°C |
| Mounting | 35 mm DIN rail |
