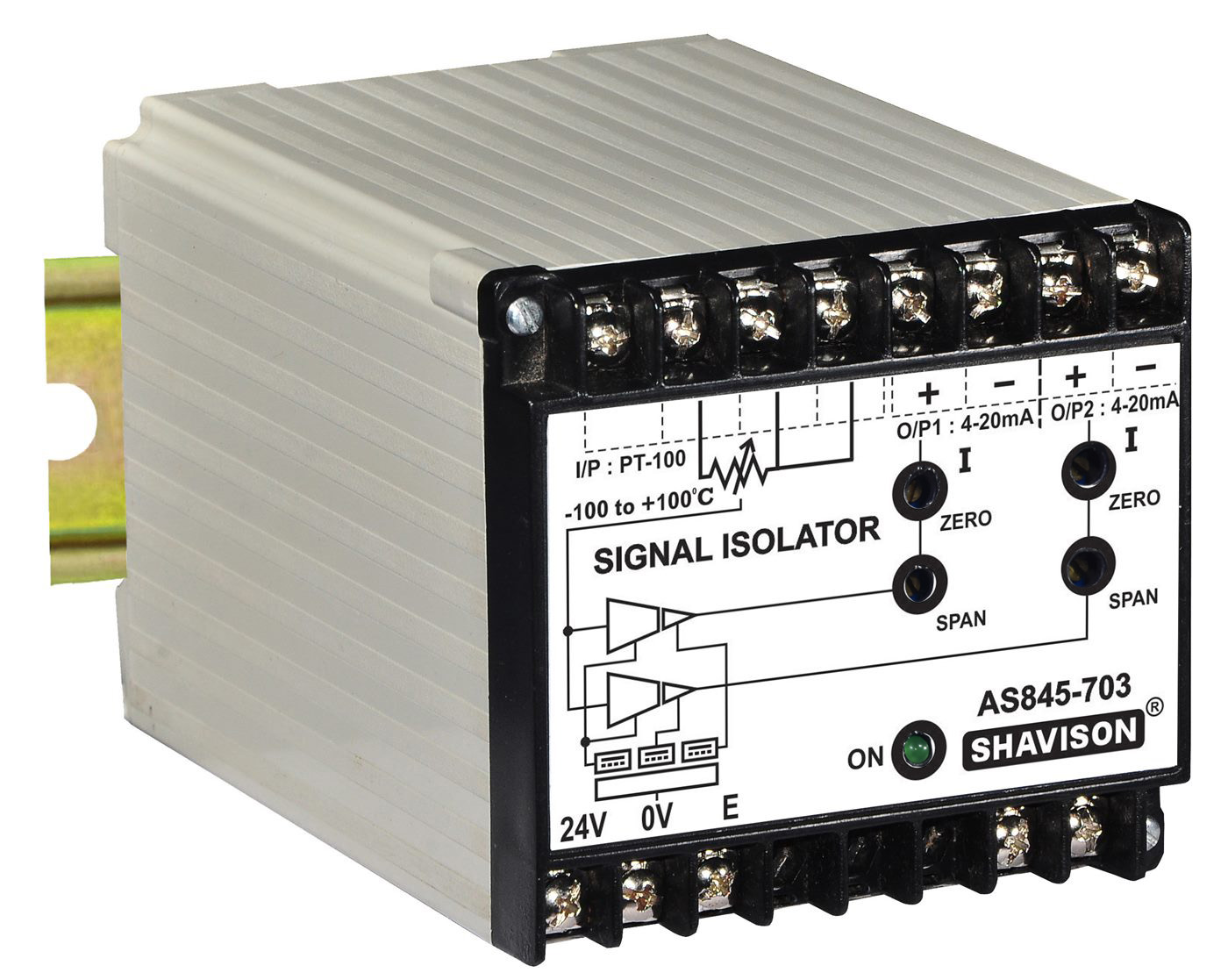

Signal Converter I/P :-100°C to+100°C,RTD-PT100,2 or 3 Wire, O/P : 4-20mA & 4-20mA, Aux Supply : 24VDC (18-36VDC)
These units offer signal conversion with 4 point isolation between Input, Output1, Output2, Power supply.
These are suitable for isolating analog signals equipments such as DC/AC drives, PLC, SCADA & others.
This improves noise immunity & prevents ground circulating currents.
These units are designed and manufactured to give consistent performance under varied atmospheric conditions.
DIN Rail Mount
| Input Type | RTD-PT100,2 or 3 Wire |
| Aux. Supply | 24VDC |
| Input | -100°C to+100°C |
| Output 1 | 4-20mA |
| Output 2 | 4-20mA |
| Operating Ambient | 0~50°C, 95% RH non-condensing |
| Storage Temperature | - 20°C to 85°C |
| Power ON Indication | Green LED on front |
| Output Ripple & Noise | Less than 1% of Span |
| Output Protection | Active current limiting with short circuit current < = 34mA max. |
| Rated Maximum Input | 5% of full scale in selected input range |
| Isolation | Input – Output : 2KVAC, 1 minute Input – Aux. Supply : 2KVAC, 1 minute Output – Aux Supply : 2KVAC, 1 minute Output 1– Output 2 : 2KVAC, 1 minute |
| Output Adjustment | Zero & Span adjustments on front |
| Accuracy | '+/- 0.5% of Full Scale from 0 to 50°C ambient temperature |
| PT100 / PT1000 Excitation Current | 300µA |
| Input Resolution | Approximately 1-2°C for 0-800°C working range |
| Response Time | < 2.8sec |
| Warm Up Time | < 30sec |
