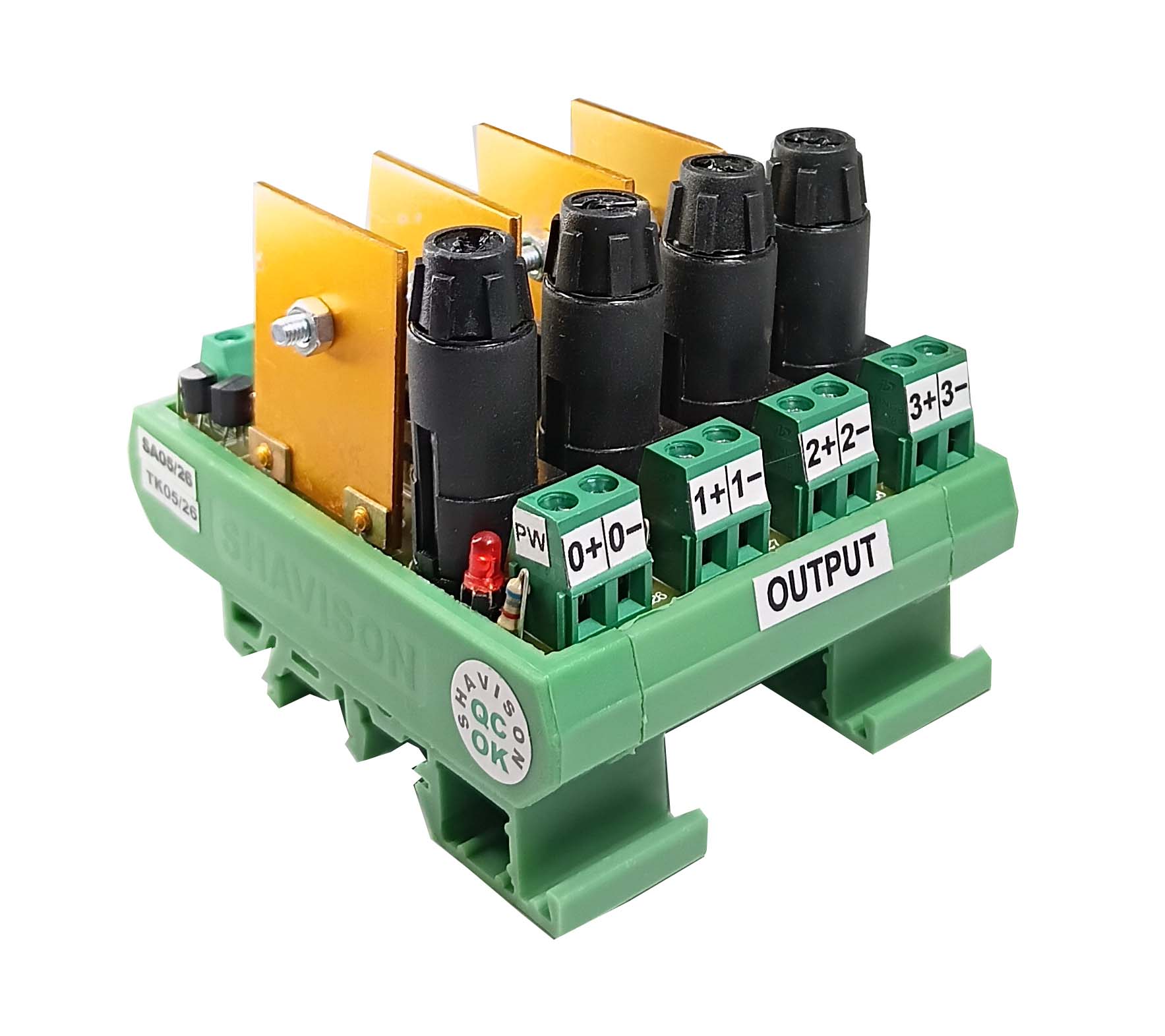

SSR Isolated, DC-DC, 4 channel, Input :3.3~30V, Output : 12V to 48VDC : 1.5A
Life 100 times more than electro mech. Relay
Input current < 10mA
Output : 12V ~ 48VDC, 1.5A
Operating Freq. upto 10KHz
Fuse at output
| Isolation | Isolated |
| Input / Output Type | DC-DC |
| No. Of Channels | 4 |
| Input Voltage | 3.3~30 V |
| Output Rating | 12V to 48VDC : 1.5A |
| Dielectric Strength | 1. Inputs - channel to channel (when isolated) : 100VAC, 50/60 Hz for 1 minute 2. Input to Output : Optical – 1.5KVAC, 50/60 Hz for 1 minute 3. Outputs - channel to channel : 1KVAC, 50/60 Hz for 1 minute |
| Features | Optical Isolation between Input & Output Wide input voltage range Low Input Current Fuse at output for over current protection |
| Operating Ambient | 0~55°C, 85% RH |
| Storage Ambient | -20°C to 85°C |
| Mounting | 35 mm DIN rail |
