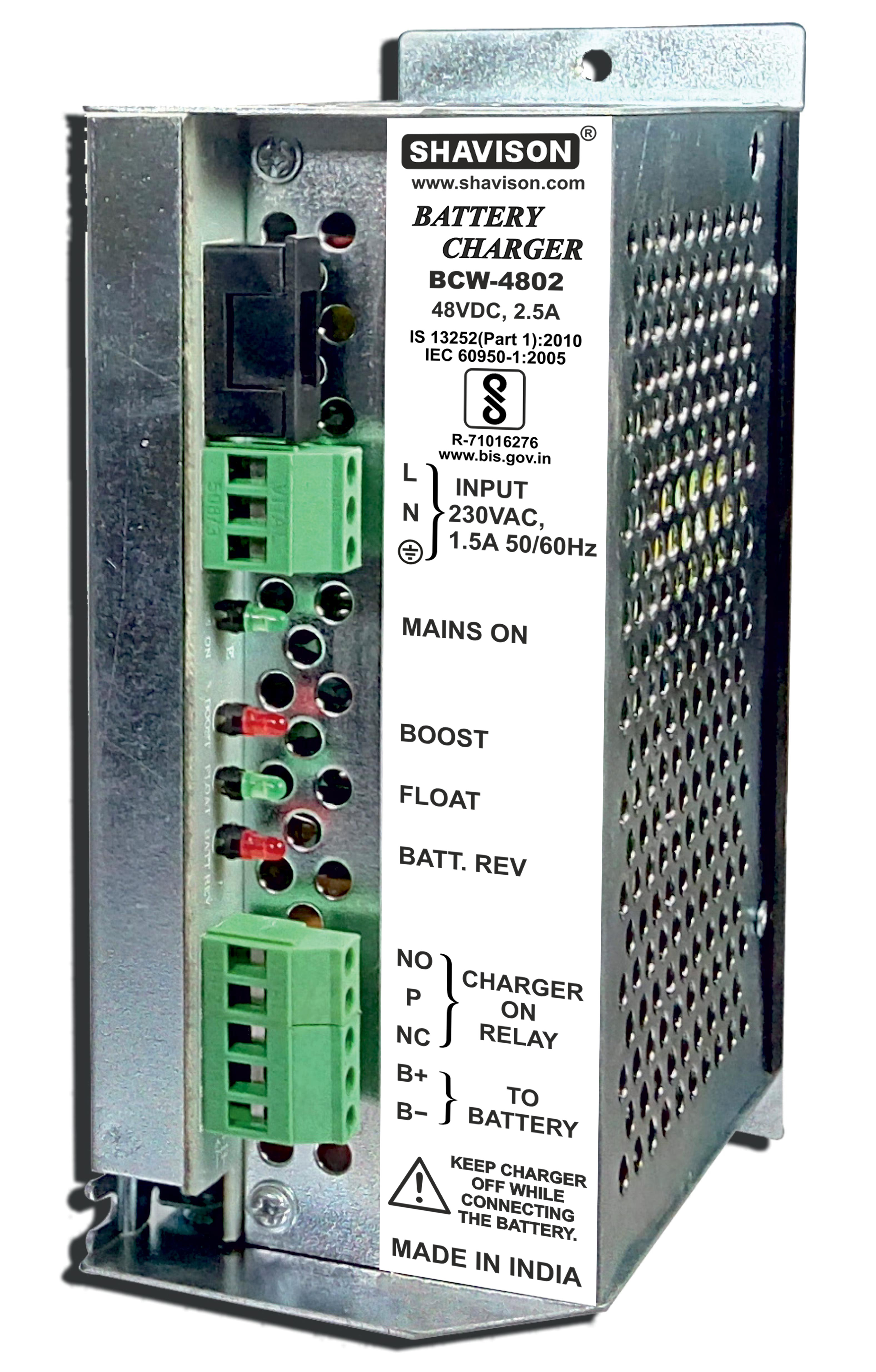

Battery charger I/P 230VAC O/P 48V,2.5A
Single Phase Input
High reliability
Built In Transient protector & EMI filter
Low ripple & noise
Cooling by free air convection
Current Limit : Yes
LED Indications: Input OK, Float, Boost, Battery Reverse
Low cost
Compact
Automatic Boost and Float control
Operates as FCBC or SMPS at Float voltage.
| Nominal Input | 230 VAC |
| Output Voltage | 48 V |
| Output Current | 2.5 A |
| Output Float Voltage | 54.10V ~ 54.20V |
| Output Boost Voltage | 56.80V ~ 57.60V |
| Output Boost Current | 2.5A |
| Ripple & Noise | +/-1% |
| Battery Drain During Charger OFF State | <50µA |
| Efficiency | 70 ~ 75% with input 230VAC & full load at output. |
| Charger On Relay | 1 C/O Contact Rated for 5A@230VAC/24VDC (Potential free contact) |
| Indications | Mains ON : Green LED Boost ON : Red LED Float ON : Green LED Output Fuse Fail : Red LED Battery Reverse Polarity :Red LED |
| Protections | Short Circuit Auto Recovery Type Overload Protection Auto Recovery Type Battery Reverse Polarity through Fuse Protection |
| Operating Ambient | 0 ~ 50°C, 95% RH |
| Storage Ambient | -20°C to 85°C |
| Features | Single Phase Input High reliability Built In Transient protector & EMI filter Low ripple & noise Cooling by free air convection ( Internal Fan for 12V model with Automatic fan control ) Current Limit : Yes LED Indications: Input OK, Float, Boost, Battery Reverse Low cost Compact |
| Isolation | Input – Output : 3KVAC, 1 minute Input – Earth : 2KVAC, 1 minute Output – Earth : 500VAC, 1 minute |
| Safety Standard | IS 13252(Part 1):2010/IEC 60950-1:2005 |
| EMC Standard | Design refers to EN55022, EN55024 |
| Certification | BIS |
| Mounting | Wall Mount |
