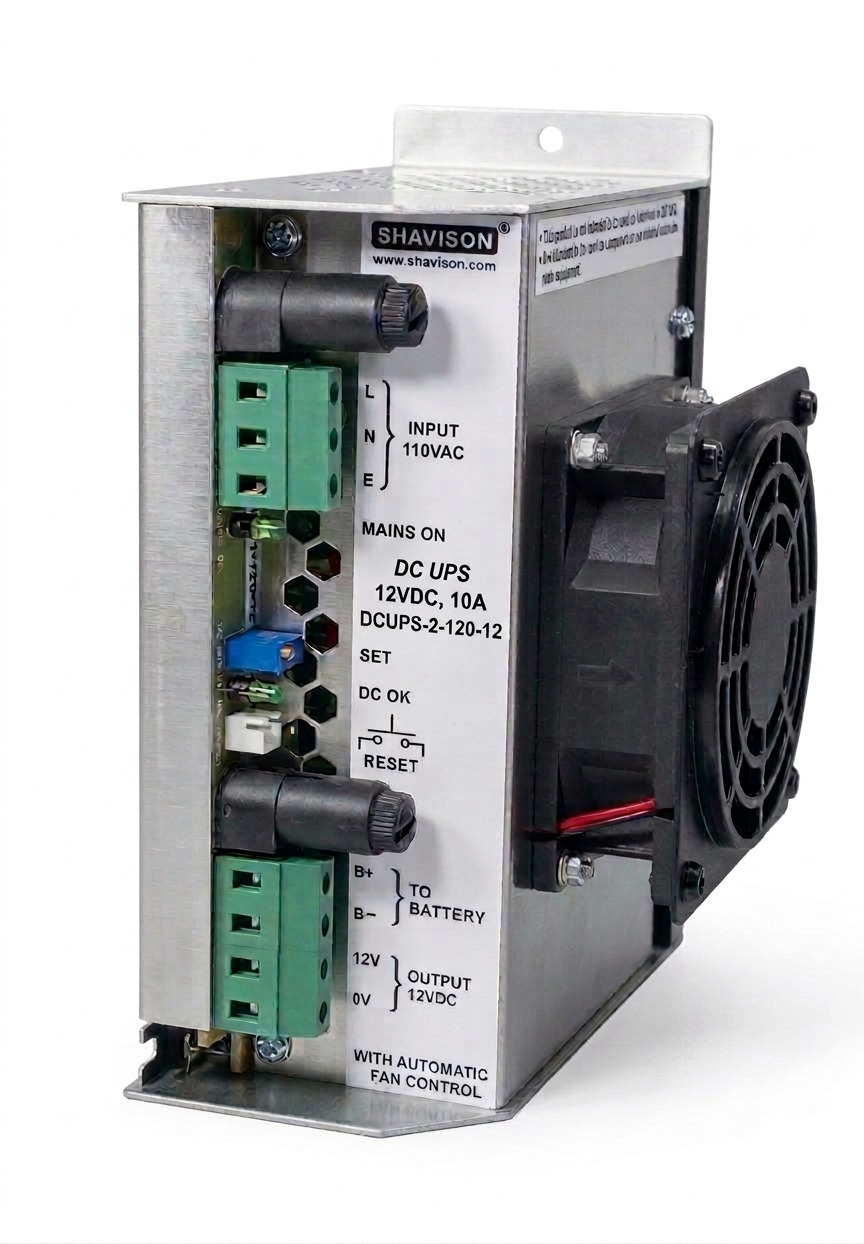

DC-UPS, I/P: 110VAC, 12V, 10A, 120W
Single Phase Input
Built In Transient protector & EMI filter
Protection against short circuit, overload, over voltage & Battery low
Battery reverse polarity protection by fuse
Low ripple & noise
Cooling by Internal Fan with automatic fan control
Power OK indication, terminations, output set control & rating details on front
100% full load burn in tested
Low cost
High reliability
Compact
| Nominal Input | 110 VAC |
| Output Voltage | 12 V |
| Output Current | 10 A |
| Watt | 120 W |
| Isolation | Input – Output : 1.5KVAC, 1 minute Input – Earth : 1.5KVAC, 1 minute Output – Earth : 500VAC, 1 minute |
| Efficiency | 71 ~ 75% |
| Operating ambient | 1 ~ 50°C,95% RH |
| Storage ambient | - 20°C to 85°C |
| Mounting | Screw / Wall Mounting |
CAD Models
