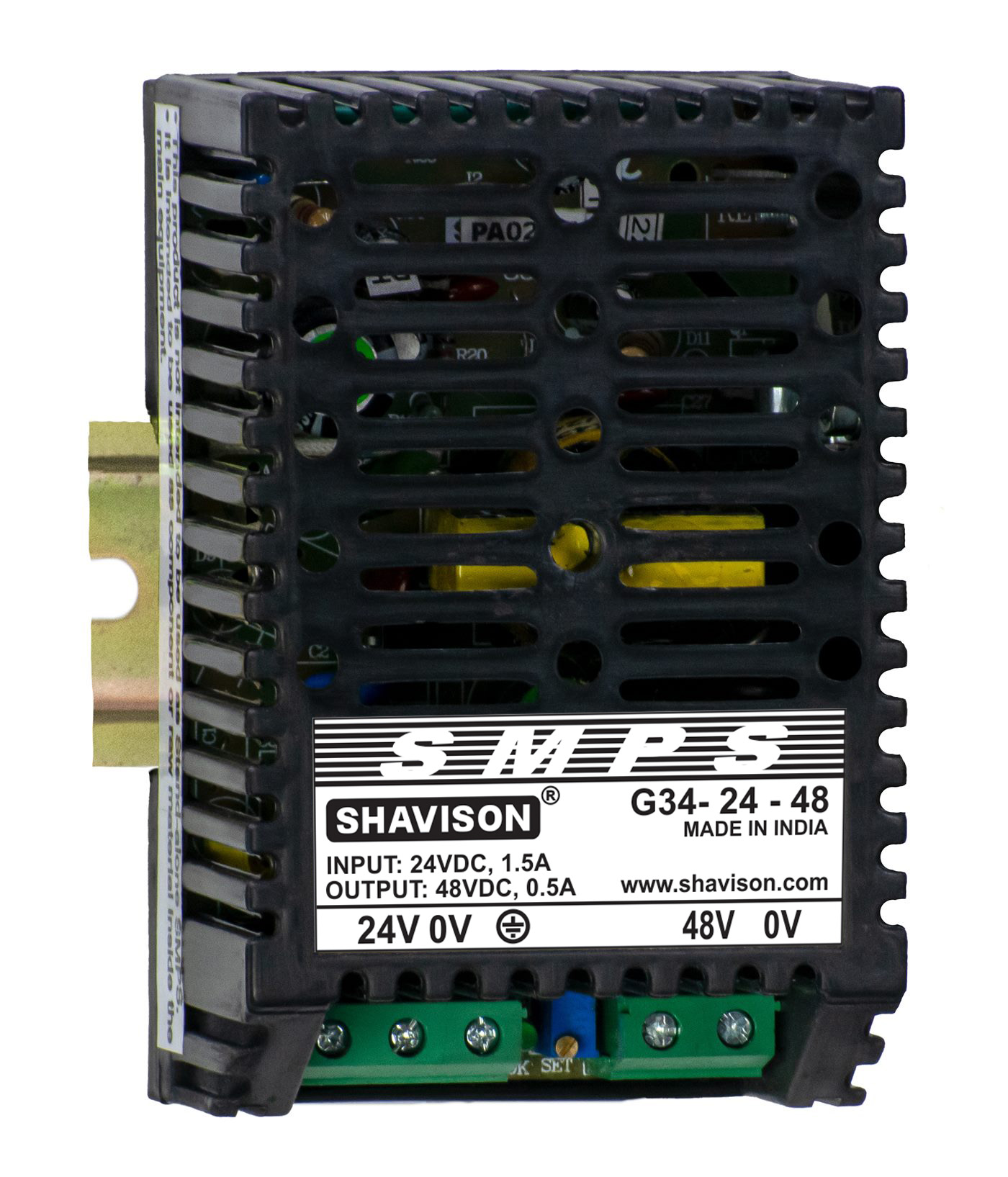

SMPS : AC-DC & DC-DC, Din Rail Mount, DC 24V : 18 to 36VDC, 48V, 0.5A, 24W,
DC Input
Built In Transient protector & EMI filter
Protection against short circuit, overload & overvoltage
Low ripple & noise
Cooling by free air convection
Power OK indication, terminations, output set control & rating details on front
100% full load burn in tested
Low cost
High reliability
Compact
| Mounting | Din Rail Mount |
| Input Voltage | DC 24V : 18 to 36VDC |
| Output Voltage | 48 V |
| Output Current | 0.5 A |
| Watt | 24 W |
| Efficiency | 70 ~ 75% with input 230VAC & full load at output |
| Line & Load Regulation | Better than 0.5% |
| Ripple & Noise | < 480mV |
| Overload Protection | 105% ~ 130% of rated load |
| Overvoltage Protection | < 63VDC |
| Operating Ambient | 0 ~ 50°C, 95% RH |
| Storage Ambient | -20°C to 85°C |
| Isolation | Input – Output : 1.5KVAC, 1 minute Input – Earth : 1.5 KVAC, 1 minute Output – Earth : 0.5KVAC, 1 minute |
