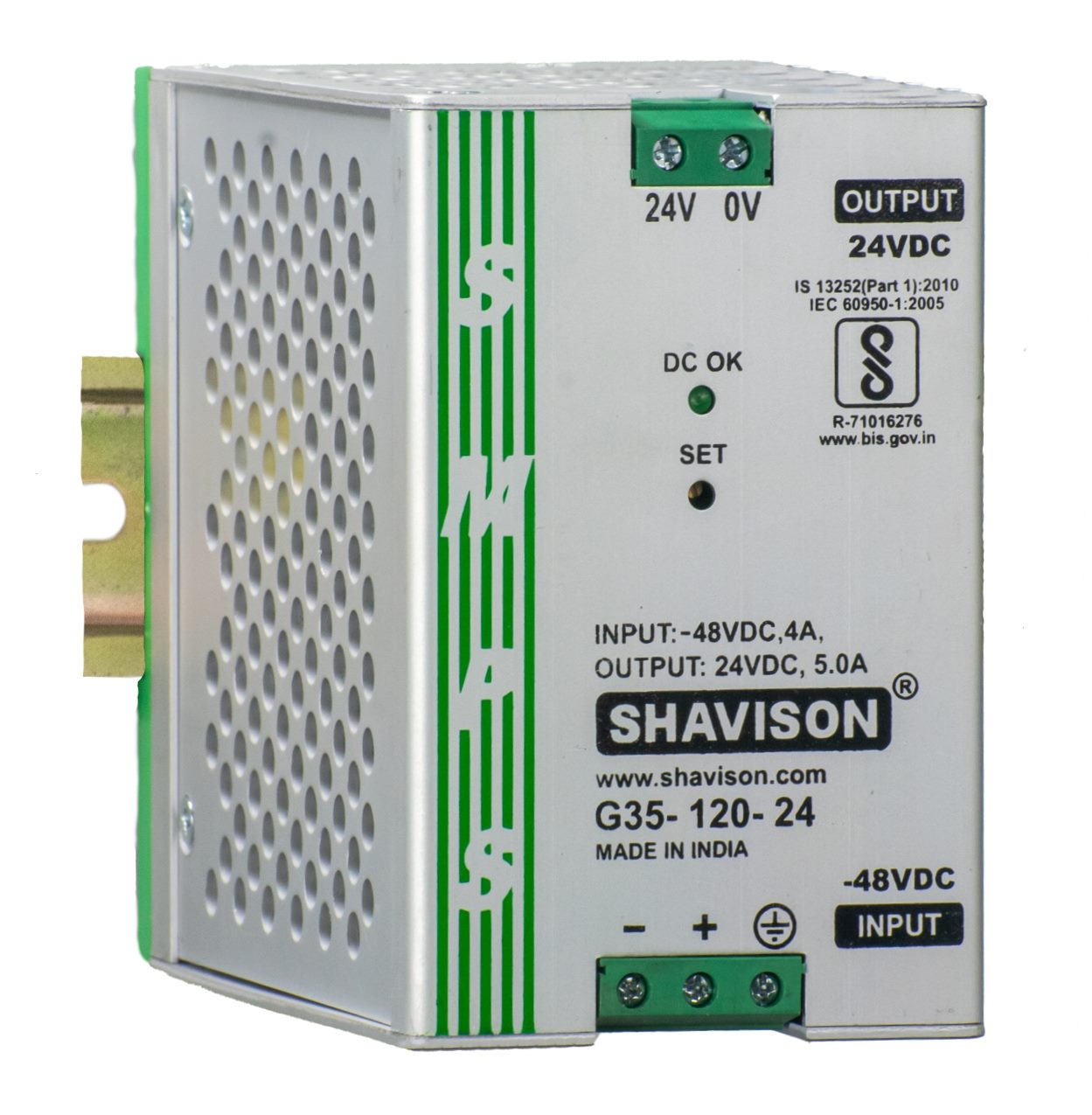

SMPS : AC-DC & DC-DC, Din Rail Mount, DC (-48V) : -38 to -60VDC, 24V, 5A, 120W, BIS
DC Input
Built In Transient protector & EMI filter
Protection against short circuit, overload & overvoltage
Low ripple & noise
Cooling by free air convection
Power OK indication, terminations, output set control & rating details on front
100% full load burn in tested
Low cost
High reliability
Compact
| Mounting | Din Rail Mount |
| Input Voltage | DC (-48V) : -38 to -60VDC |
| Output Voltage | 24 V |
| Output Current | 5 A |
| Watt | 120 W |
| Efficiency | 70 ~ 75% with input 230VAC & full load at output |
| Line & Load Regulation | Better than 0.5% |
| Ripple & Noise | < 240mV |
| Overload Protection | 105% ~ 130% of rated load |
| Overvoltage Protection | < 30VDC |
| Operating Ambient | 0 ~ 50°C, 95% RH |
| Storage Ambient | -20°C to 85°C |
| Isolation | Input – Output : 1.5KVAC, 1 minute Input – Earth : 1.5 KVAC, 1 minute Output – Earth : 0.5KVAC, 1 minute |
| Safety Standard | IS 13252(Part 1):2010/IEC 60950-1:2005 |
| Certification | BIS |
