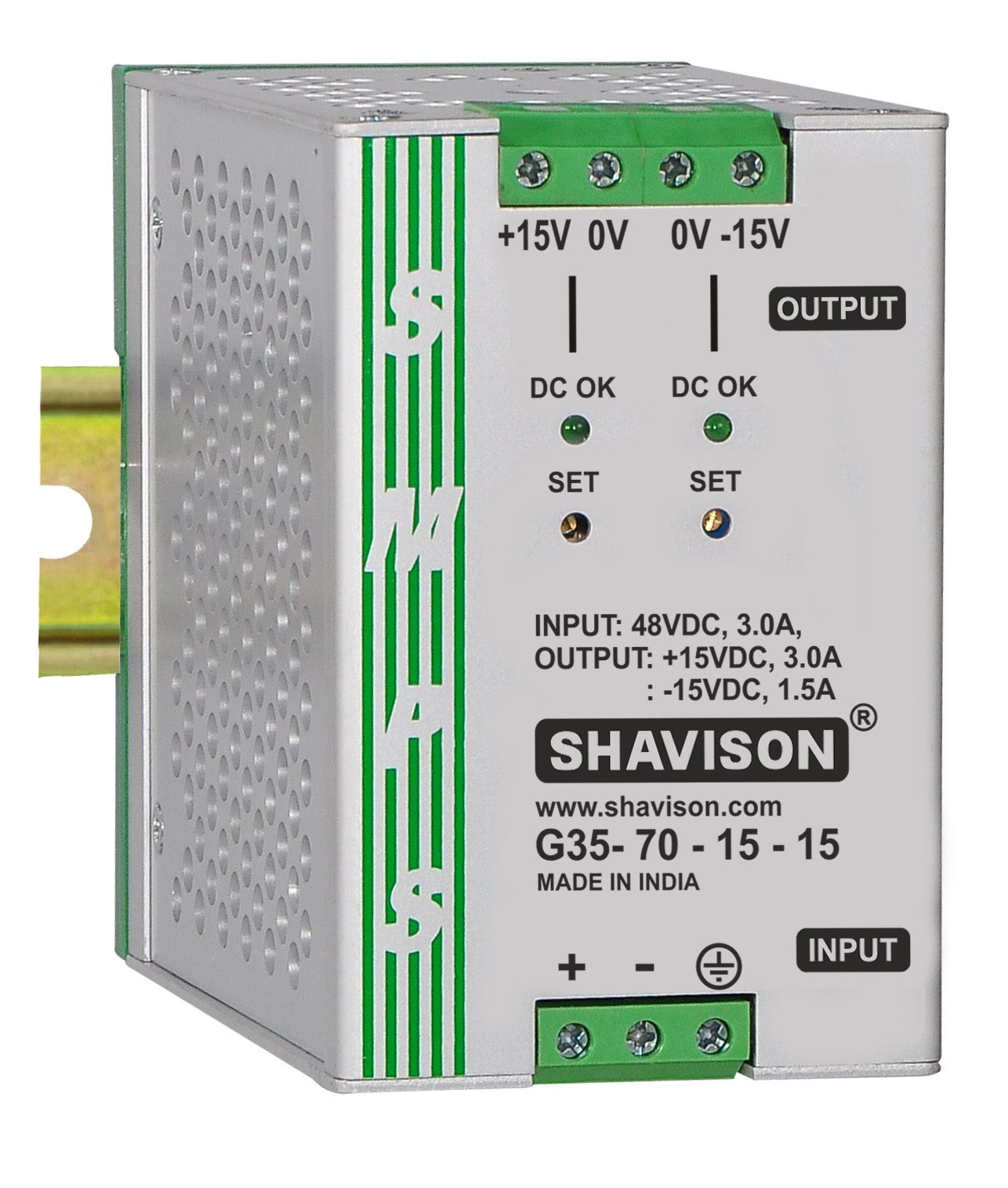

SMPS : AC-DC & DC-DC, Enclosed, DC : 36V to 60VDC, +15V:3A, -15V:1.5A, 70W
Single Phase Input
Built In Transient protector & EMI filter
Protection against short circuit, overload & overvoltage
Low ripple & noise
Cooling by free air convection
Power OK indication, terminations, output set control & rating details on front
100% full load burn in tested
Low cost
High reliability
Compact
| Type | Enclosed |
| Mounting | Din Rail Mount |
| Input Voltage | DC : 36V to 60VDC |
| Output 1 | +15V:3A |
| Output 2 | -15V:1.5A |
| Watt | 70 |
| Efficiency | 70 ~ 75% with input 230VAC & full load at output |
| Line & Load Regulation | Better than 0.5% for both outputs |
| Ripple & Noise | < 150mV < 150mV |
| Overload Protection | 105% ~ 130% of rated load (O/P2 is with internal thermal shutdown) |
| Overvoltage Protection | < 20V |
| Hold Up Time | > 20ms at rated input voltage and load |
| Operating Ambient | 0 ~ 50°C, 95% RH |
| Storage Ambient | -20°C to 85°C |
| Isolation | Input – Output : 1.5KVAC, 1 minute Input – Earth : 1.5KVAC, 1 minute Output – Earth : 0.5KVAC, 1 minute |
