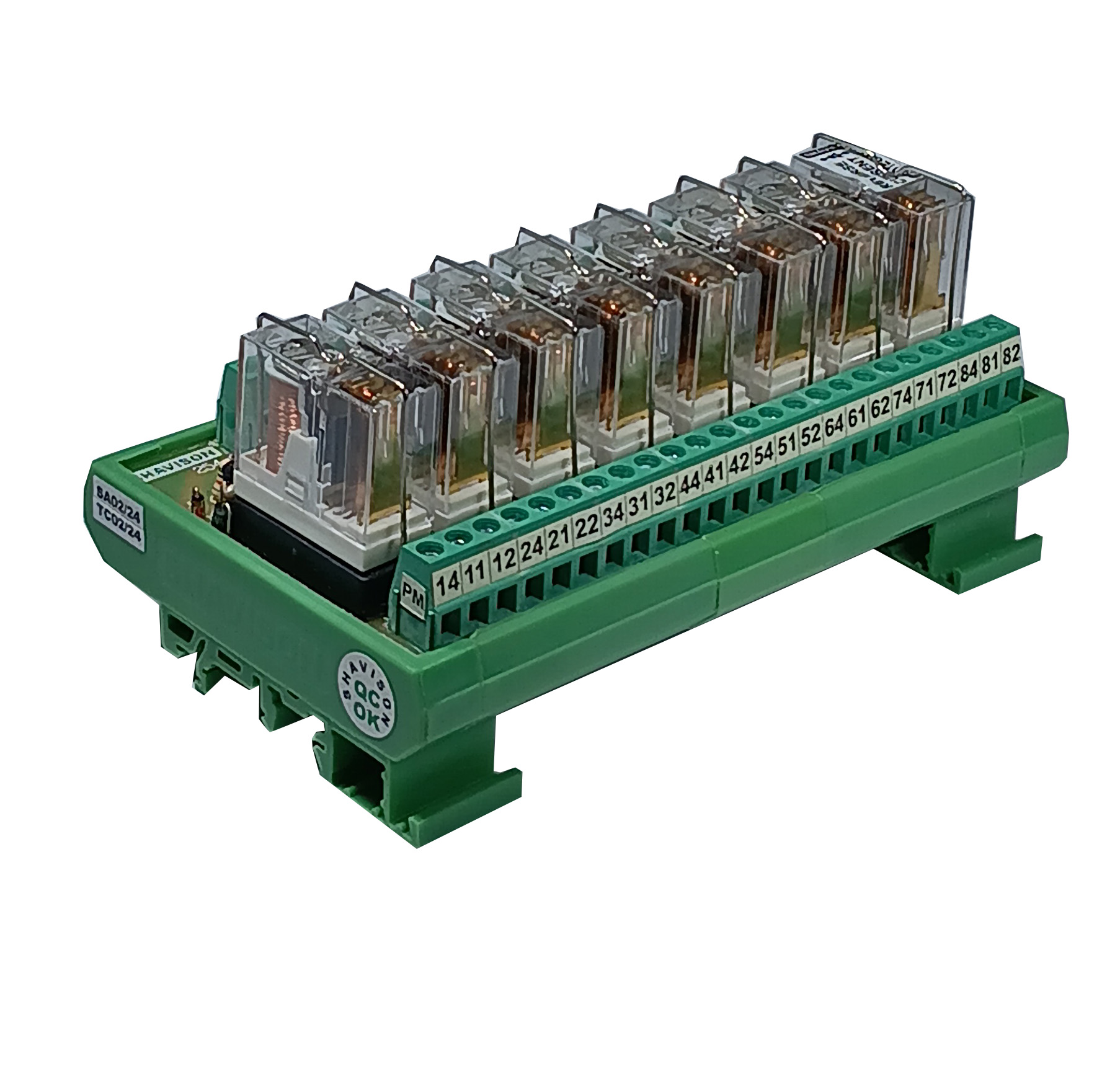

Relay Module 1 C/O, 8 Channel, TTL Input : 24V, Coil : 12VDC Coil, Negative Looped, Directly Soldered, O/E/N 58 Relay, Contact : Relay : 10A @28VDC/230VAC On Board : 5A @28VDC/230VAC
LED & Free wheeling diode across coil
Low current control input
| Contact Configuration | 1 C/O |
| No Of Channels | 8 |
| Coil Voltage/ Input | TTL Input : 24V, Coil : 12VDC |
| Coil Looping | Negative Looped |
| Contact Rating | Relay : 10A @28VDC/230VAC On Board : 5A @28VDC/230VAC |
| Terminations | Screw Type |
| Relay Socket | Directly Soldered |
| Relay Make/Type | O/E/N 58 |
| Mounting | 35mm DIN Rail |
| Special Type | 1 C/O Relay Module With TTL / Low current input |
| Availability | Upon Request |
