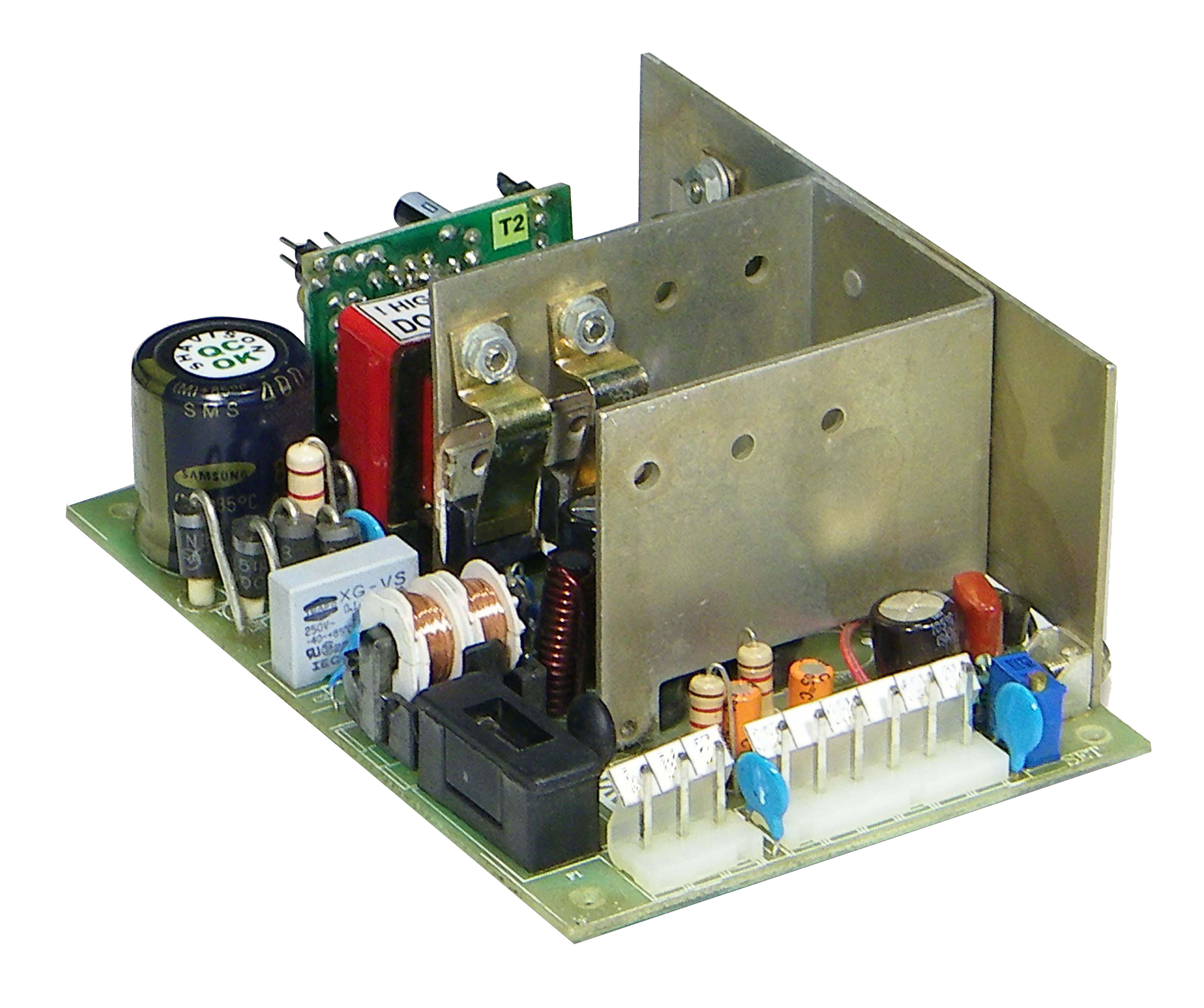

SMPS MultioutputO/P1 : 5V,1A, O/P2 : +/-24V:2.5A , O/P4 : 5V,500mA
Single Phase Input
Built In Transient protector & EMI filter
Low ripple & noise
Cooling by free air convection
Power OK indication & master output voltage set control
Low cost
High reliability
Compact
| Type | Open Frame |
| Terminations | CPU Connector Male, 5.08mm pitch |
| Input Voltage | AC 230V : 185 to 270VAC /200 to 360VDC |
| Output 1 | 5V:1A |
| Output 2 | +/-24V:2.5A |
| Output 3 | +/-24V:2.5A |
| Output 4 | 5V:500mA |
| Wattage | 60 W |
| Efficiency | 70 ~ 75% with input 230VAC & full load at output |
| Line Regulation | 0.5% |
| Operating Ambient | 0 ~ 50°C, 95% RH |
| Storage Ambient | -20°C to 85°C |
| Isolation | Input – Output : 1.5KVAC FOR 1 minute, leakage < 5mA Input – Earth : 1.5KVAC, 1 minute, leakage < 5mA Output – Earth : 0.5KVAC, 1 minute, leakage < 5mA Output – Output : 0.5KVAC, 1 minute, leakage < 5mA |
| Availability | Upon Request |
