AS522-24V
Optical Isolation between I/O
Negligible switching delay
+Ve or -Ve common through jumper selection

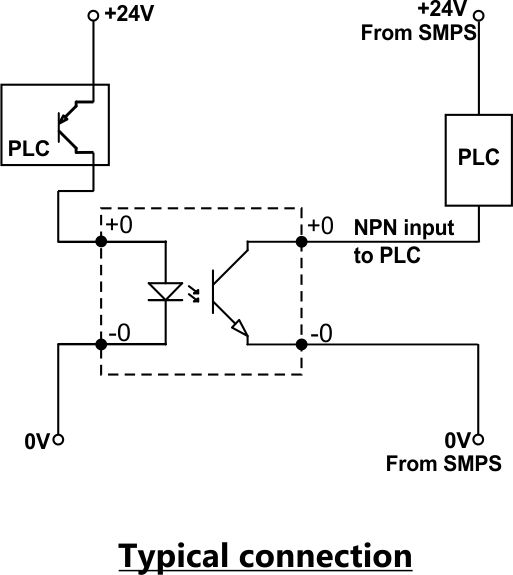

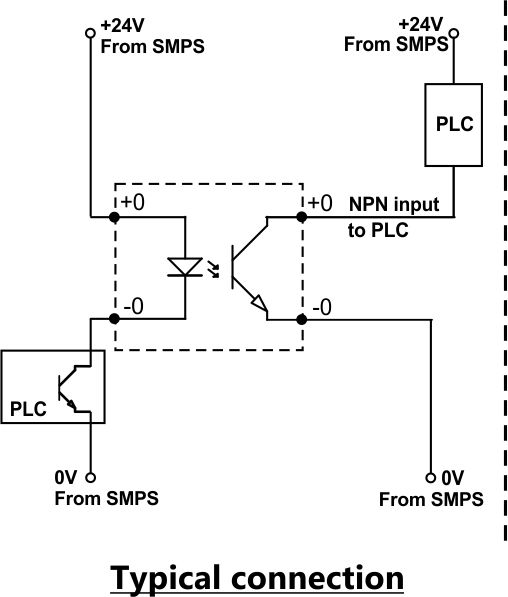

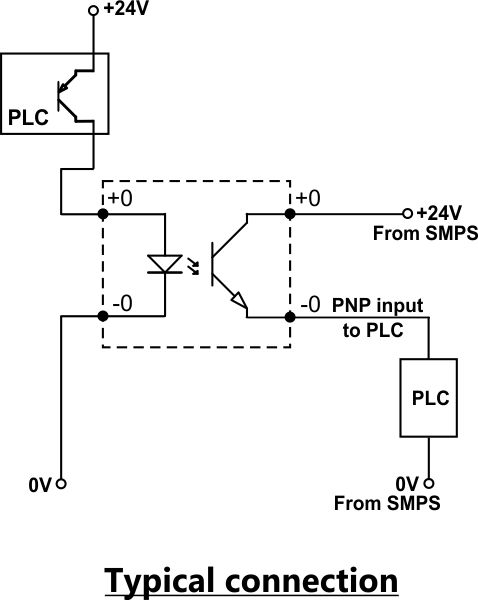

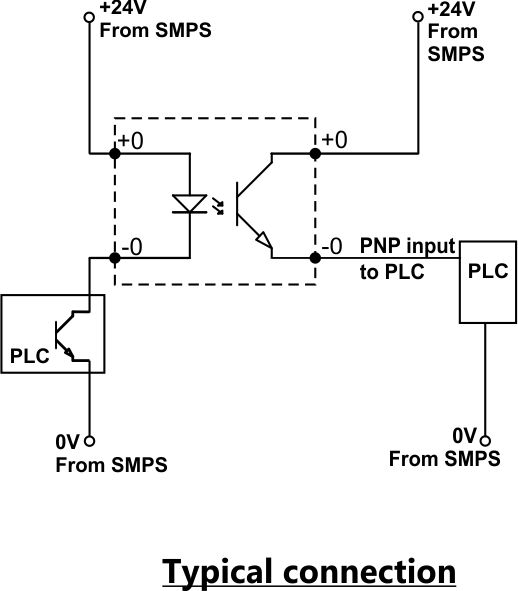

Can be used as NPN to PNP Converter or vice versa
Input: 24V, current <15mA
Output : 5V-30VDC,15mA
| Opto Type | Standard Upto 10KHz |
| Input Voltage | 24V |
| No. Of Channels | 2 |
| Dielectric Strength |
1. Inputs - channel to channel (when isolated) : 100VAC, 50/60 Hz for 1 minute 2. Input to Output : Optical - 500VAC, 50/60 Hz for 1 minute 3. Outputs - channel to channel (when isolated) : 100VAC, 50/60 Hz for 1 minute |
| Features |
Optical Isolation between Input & Output +Ve or -Ve common through jumper selection Low Input Current Can be used as NPN to PNP Converter or vice versa Negligible switching delay |
| Operating Ambient | 0~55°C, 85% RH |
| Storage Ambient | -20°C to 85°C |
| Termination Input & Output Side | Screw type, for 2.5mm sq. wire |
| Mounting | 35 mm DIN rail |
| Availability | Ex-Stock Subject to prior sale |
CAD Models
