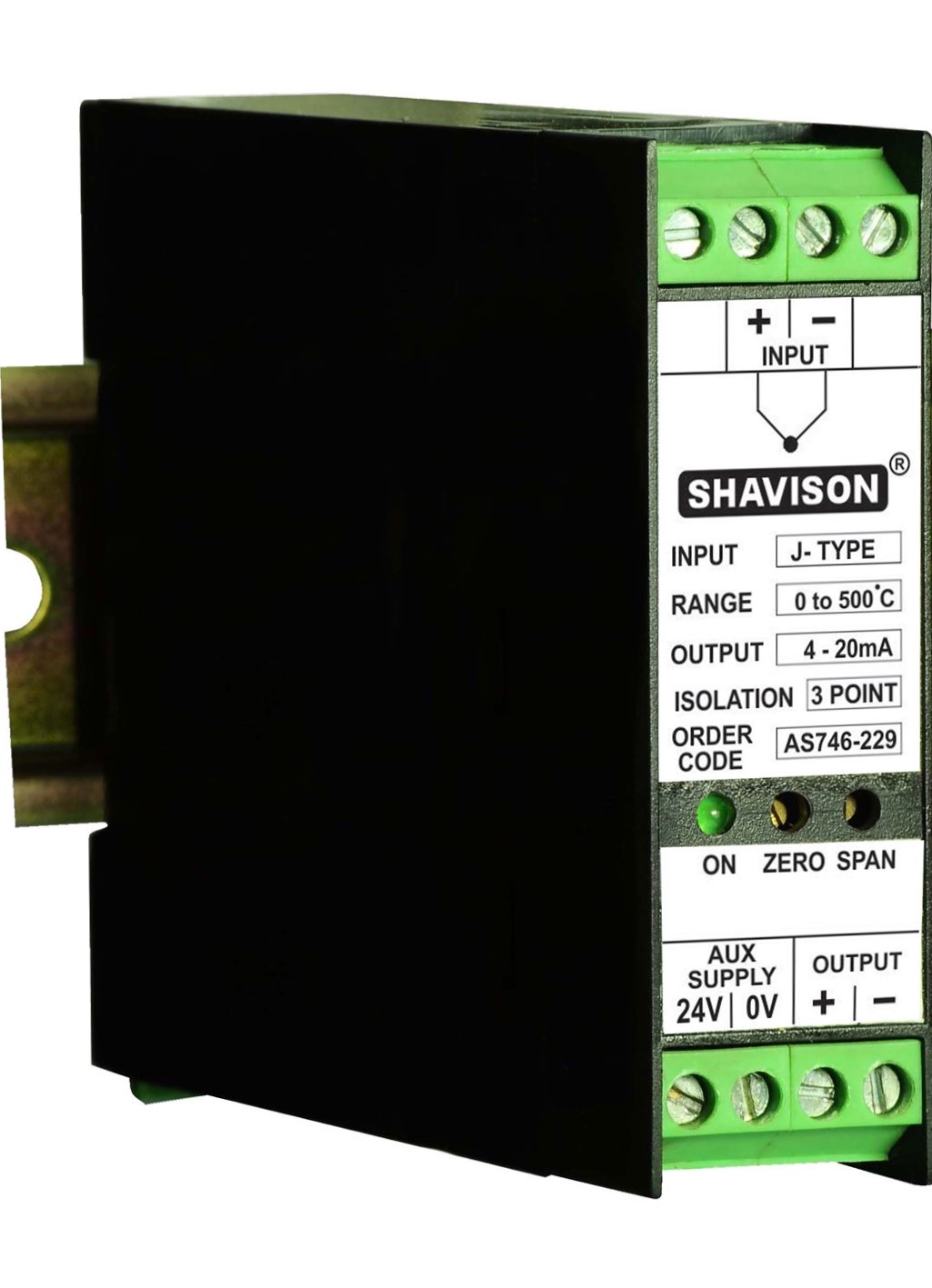

AS746-229
22.5mm Slim Converter
Single Input - Output
Aux. Supply : 18 to 32VDC
3 Point Isolation
| Input Type | Thermocouple J Type |
| Input | 0 to 500ºC |
| Output | 4-20mA |
| Aux. Supply | 24VDC |
| Operating Ambient | 15~35°C, 95% RH non-condensing. |
| Storage Temperature | -20°C to 85°C |
| Response Time | < 15 ms |
| Output Ripple & Noise | Less than 1% of Span |
| Isolation |
Input – Output : 1.5KVAC, 1 minute Input – Aux. Supply : 1.5KVAC, 1 minute Output – Aux Supply : 1.5KVAC, 1 minute |
| Adjustments | Zero & Span adjustments on front |
| Protection | Output short circuit current = 30mA max |
| Accuracy |
+/- 0.7% of Full Scale@35°C ambient temperature + Thermocouple linearity error +/- Cold junction compensation of 2ºC |
| Max. Input | 10VDC |
| Mounting | DIN Rail Mount |
| Availability | Upon Request |
