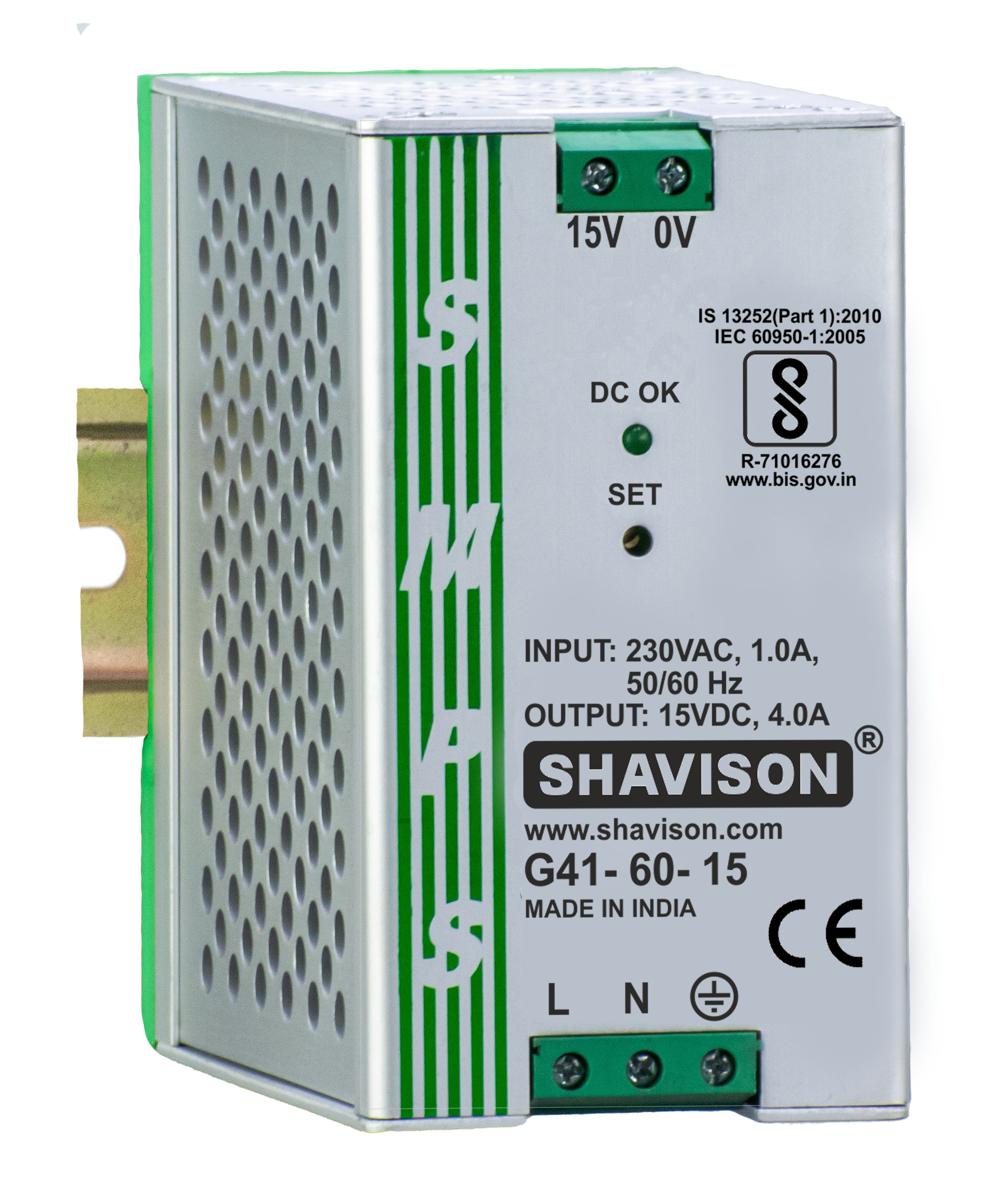

SMPS : AC-DC & DC-DC, Din Rail Mount, AC 230V : 185 to 270VAC / 220 to 360VDC, 15V, 4A, 60W, CE & BIS
Single Phase Input
Built In Transient protector & EMI filter
Protection against short circuit, overload & overvoltage
Low ripple & noise
Cooling by free air convection
Power OK indication, terminations, output set control & rating details on front
100% full load burn in tested
Low cost
High reliability
Compact
| Mounting | Din Rail Mount |
| Input Voltage | AC 230V : 185 to 270VAC / 220 to 360VDC |
| Output Voltage | 15 V |
| Output Current | 4 A |
| Watt | 60 W |
| Efficiency | 80 ~ 85% with input 230VAC & full load at output |
| Line & Load Regulation | Better than 0.5% |
| Ripple & Noise | < 150mV |
| Overload Protection | 105% ~ 130% of rated load |
| Overvoltage Protection | < 20V |
| Hold Up Time | > 20ms at rated input voltage and load |
| Operating Ambient | 0 ~ 50°C, 95% RH |
| Storage Ambient | -20°C to 85°C |
| Isolation | Input – Output : 3KVAC, 1 minute Input – Earth : 2KVAC, 1 minute Output – Earth : 0.5KVAC, 1 minute |
| Safety Standard | IS 13252(Part 1):2010/IEC 60950-1:2005 |
| EMC Standard | EN55022, EN55024 |
| Certification | CE & BIS |
| Specifications |
Base Product
G41-60-15
|
Variant 1
AS464-103
|
|---|---|---|
| Mounting | Din Rail Mount | Open Frame |
| Input Voltage | AC 230V : 185 to 270VAC / 220 to 360VDC | AC 230V : 185 to 270VAC / 220 to 360VDC |
| Output Voltage | 15 V | 15 V |
| Output Current | 4 A | 4 A |
| Watt | 60 W | 60 W |
| Efficiency | 80 ~ 85% with input 230VAC & full load at output | 70 ~ 75% with input 230VAC & full load at output |
| Line & Load Regulation | Better than 0.5% | Better than 0.5% |
| Ripple & Noise | < 150mV | < 2.5% |
| Overload Protection | 105% ~ 130% of rated load | - |
| Overvoltage Protection | < 20V | < 20V |
| Hold Up Time | > 20ms at rated input voltage and load | > 20ms at rated input voltage and load |
| Operating Ambient | 0 ~ 50°C, 95% RH | 0 ~ 50°C, 95% RH |
| Storage Ambient | -20°C to 85°C | -20°C to 85°C |
| Isolation |
Input – Output : 3KVAC, 1 minute Input – Earth : 2KVAC, 1 minute Output – Earth : 0.5KVAC, 1 minute |
Input – Output : 1.5KVAC, 1 minute Input – Earth : 1.5 KVAC, 1 minute Output – Earth : 0.5KVAC, 1 minute |
| Safety Standard | IS 13252(Part 1):2010/IEC 60950-1:2005 | - |
| EMC Standard | EN55022, EN55024 | - |
| Certification | CE & BIS | - |
| Price Factor | 100% | N/A |
