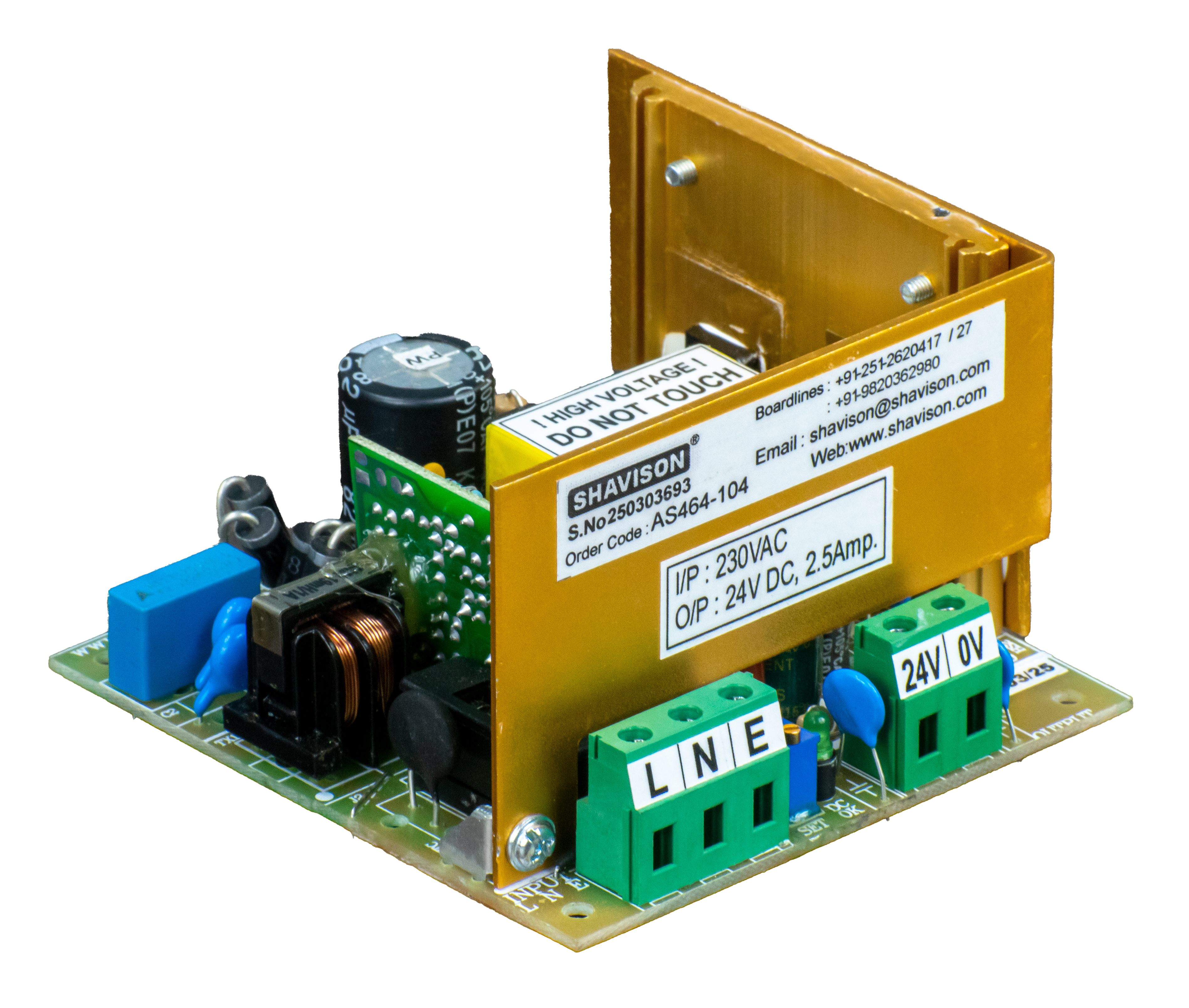

SMPS : AC-DC & DC-DC, Open Frame, AC 230V : 185 to 270VAC / 220 to 360VDC, 24V, 2.5A, 60W,
Single Phase Input
Built In Transient protector & EMI filter
Protection against short circuit, overload & overvoltage
Low ripple & noise
Cooling by free air convection
Power OK indication, terminations, output set control & rating details on front
100% full load burn in tested
Low cost
High reliability
Compact
| Mounting | Open Frame |
| Input Voltage | AC 230V : 185 to 270VAC / 220 to 360VDC |
| Output Voltage | 24 V |
| Output Current | 2.5 A |
| Watt | 60 W |
| Efficiency | 70 ~ 75% with input 230VAC & full load at output |
| Line & Load Regulation | Better than 0.5% |
| Ripple & Noise | < 2.5% |
| Overvoltage Protection | < 30V |
| Hold Up Time | > 20ms at rated input voltage and load |
| Operating Ambient | 0 ~ 50°C, 95% RH |
| Storage Ambient | -20°C to 85°C |
| Isolation | Input – Output : 1.5KVAC, 1 minute Input – Earth : 1.5 KVAC, 1 minute Output – Earth : 0.5KVAC, 1 minute |
