SMPS : AC-DC & DC-DC, Din Rail + Panel Mount, AC 230V : 185 to 270VAC / 220 to 360VDC, 24V, 2.5A, 60W, BIS
Single Phase Input
Built In Transient protector & EMI filter
Protection against short circuit, overload & overvoltage
Low ripple & noise
Cooling by free air convection
Power OK indication, terminations, output set control & rating details on front
100% full load burn in tested
Low cost
High reliability
Compact
| Mounting | Din Rail + Panel Mount |
| Input Voltage | AC 230V : 185 to 270VAC / 220 to 360VDC |
| Output Voltage | 24 V |
| Output Current | 2.5 A |
| Watt | 60 W |
| Efficiency | 80 ~ 85% with input 230VAC & full load at output |
| Line & Load Regulation | Better than 0.5% |
| Ripple & Noise | 240mV |
| Overload Protection | 105% ~ 130% of rated load |
| Overvoltage Protection | < 30V |
| Hold Up Time | > 20ms at rated input voltage and load |
| Operating Ambient | 0 ~ 50°C, 95% RH |
| Storage Ambient | -20°C to 85°C |
| Isolation | Input – Output : 3KVAC, 1 minute Input – Earth : 2KVAC, 1 minute Output – Earth : 0.5KVAC, 1 minute |
| Safety Standard | IS 13252(Part 1):2010/IEC 60950-1:2005 |
| EMC Standard | Design refers to EN55022, EN55024 |
| Certification | BIS |
| Specifications |
Base Product

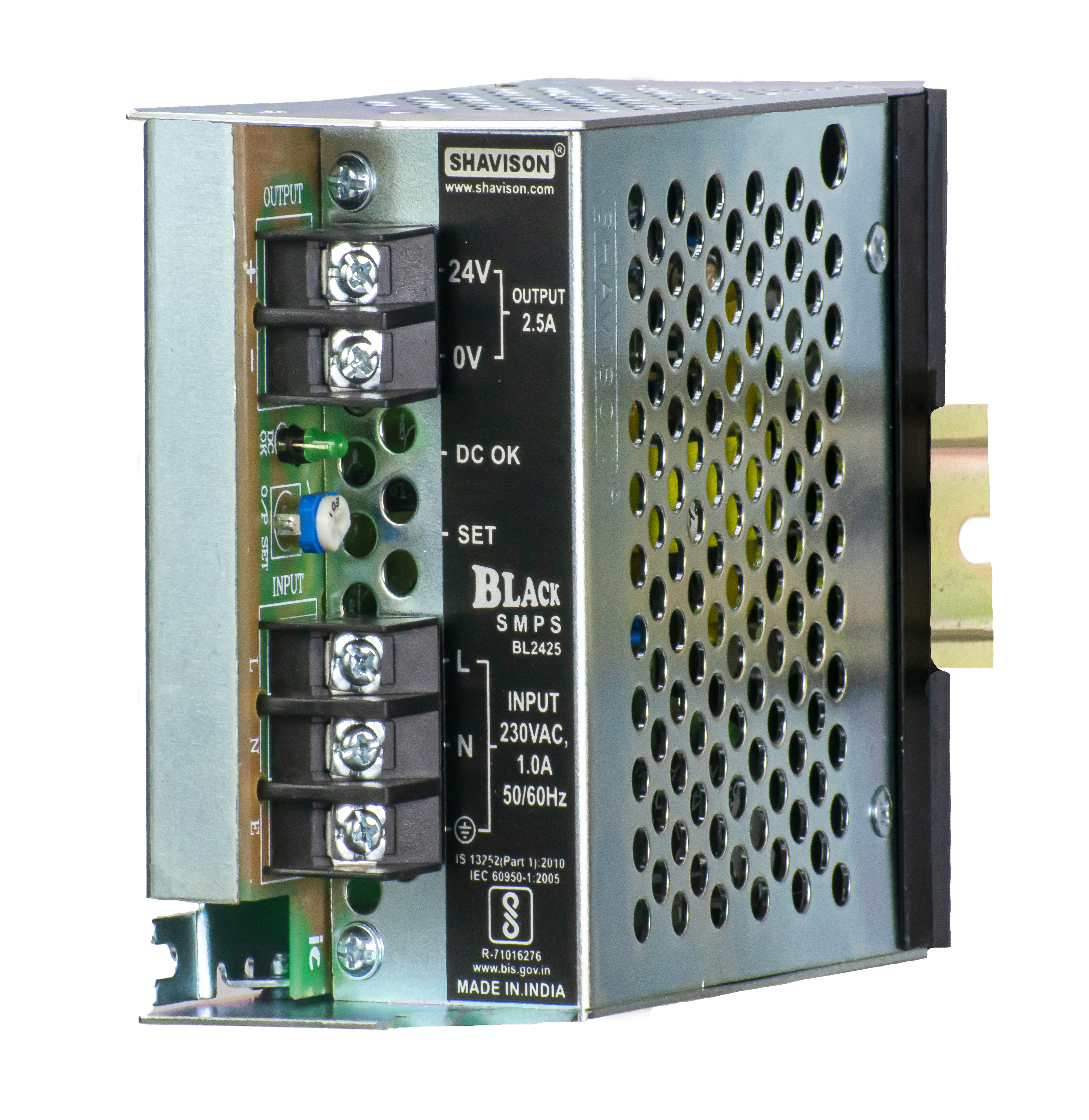

BL2425
|
Variant 1

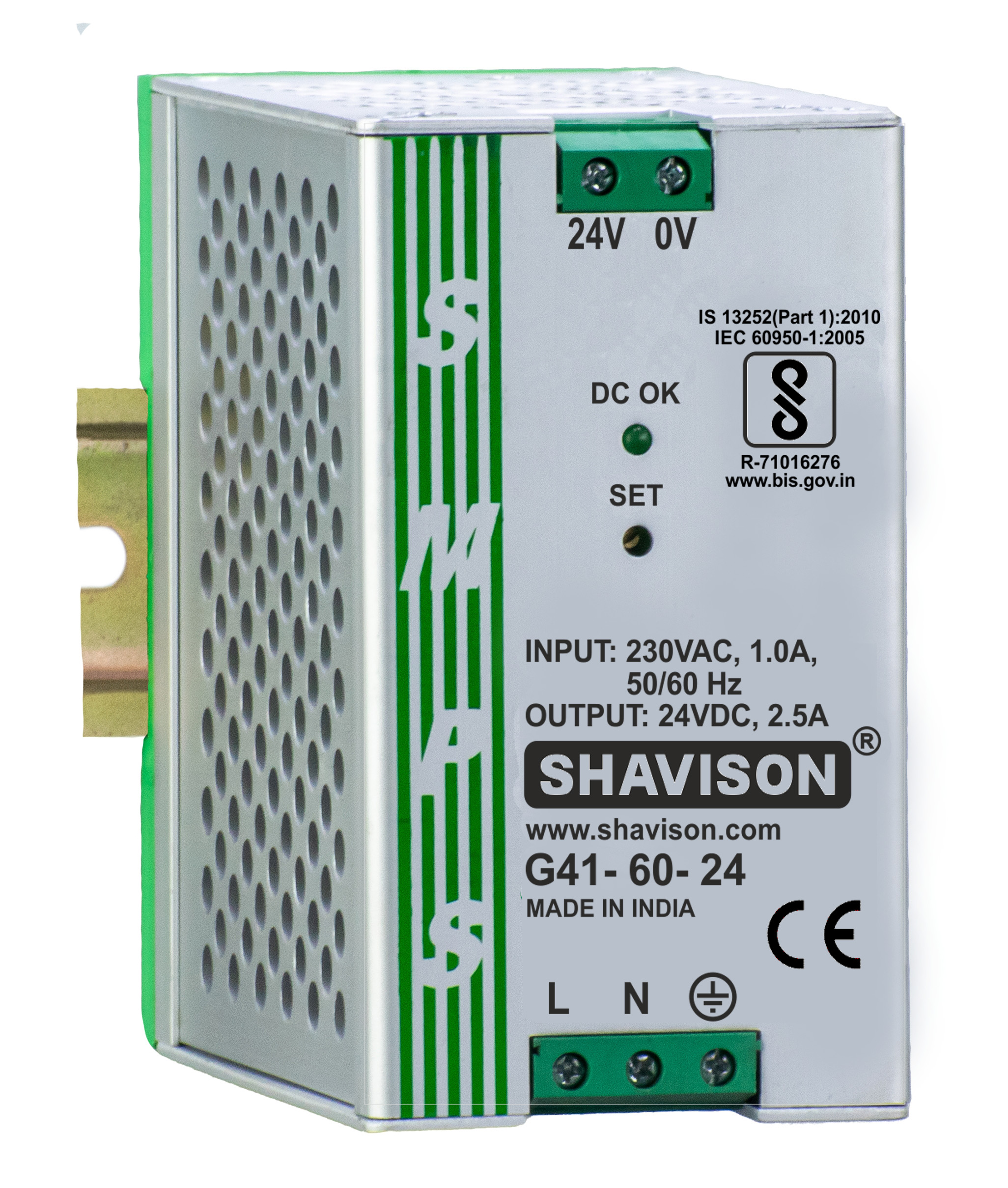

G41-60-24
|
Variant 2

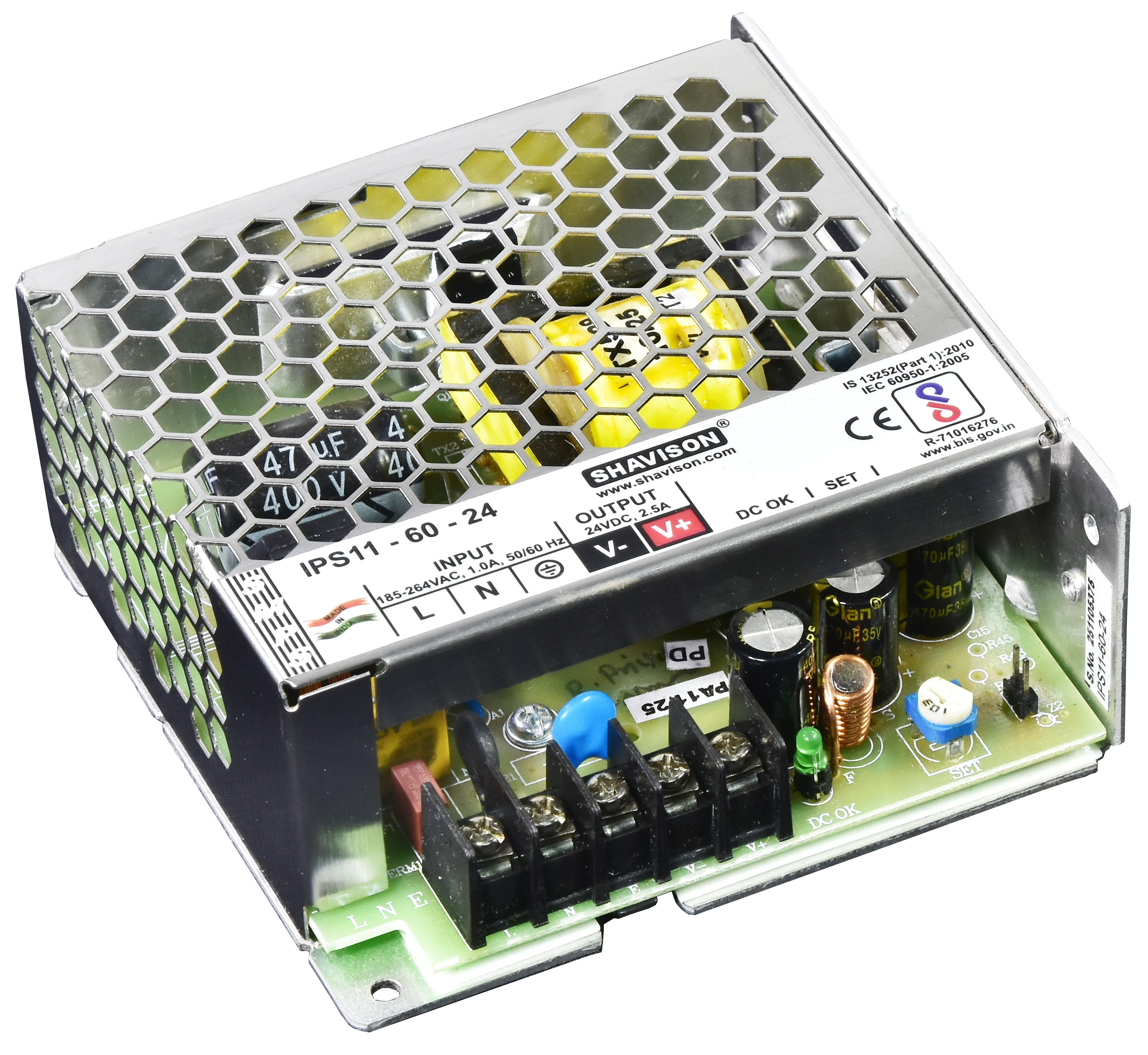

IPS11-60-24
|
|---|---|---|---|
| Mounting | Din Rail + Panel Mount | Din Rail Mount | Panel / Wall mount (DIN Rail With Adapter) |
| Input Voltage | AC 230V : 185 to 270VAC / 220 to 360VDC | AC 230V : 185 to 270VAC / 220 to 360VDC | AC 230V : 185 to 270VAC / 220 to 360VDC |
| Output Voltage | 24 V | 24 V | 24 V |
| Output Current | 2.5 A | 2.5 A | 2.5 A |
| Watt | 60 W | 60 W | 60 W |
| Efficiency | 80 ~ 85% with input 230VAC & full load at output | 80 ~ 85% with input 230VAC & full load at output | 83% with input 230VAC & full load at output. |
| Line & Load Regulation | Better than 0.5% | Better than 0.5% | Better than 0.5% |
| Ripple & Noise | 240mV | < 240mV | < 240mV |
| Overload Protection | 105% ~ 130% of rated load | 105% ~ 130% of rated load | 105% ~ 130% of rated load |
| Overvoltage Protection | < 30V | < 30V | < 30V |
| Hold Up Time | > 20ms at rated input voltage and load | > 20ms at rated input voltage and load | > 20ms at rated input voltage and load |
| Operating Ambient | 0 ~ 50°C, 95% RH | 0 ~ 50°C, 95% RH | 0 ~ 50°C, 95% RH |
| Storage Ambient | -20°C to 85°C | -20°C to 85°C | -20°C to 85°C |
| Isolation |
Input – Output : 3KVAC, 1 minute Input – Earth : 2KVAC, 1 minute Output – Earth : 0.5KVAC, 1 minute |
Input – Output : 3KVAC, 1 minute Input – Earth : 2KVAC, 1 minute Output – Earth : 0.5KVAC, 1 minute |
Input – Output : 3KVAC, 1 minute Input – Earth : 2KVAC, 1 minute Output – Earth : 0.5KVAC, 1 minute |
| Safety Standard | IS 13252(Part 1):2010/IEC 60950-1:2005 | IS 13252(Part 1):2010/IEC 60950-1:2005 | IS 13252(Part 1):2010/IEC 60950-1:2005 |
| EMC Standard | Design refers to EN55022, EN55024 | EN55022, EN55024 | EN55032, EN55035 |
| Certification | BIS | CE & BIS | CE & BIS |
| Price Factor | 100% | + 21.14% | - 26.83% |
